Key Features
SEPARATION MODEL
Liqcreate Separation Model is a specialized photopolymer resin for 3D-printing dental models that exhibit non-adhesion performance toward acrylic-based materials. It is compatible with most open-material DLP, MSLA, and laser-based 3D-printers operating at wavelengths between 385-405nm.
Printed parts exhibit good accuracy, matt surface finish, and predictable separation behavior, making it ideal for orthodontic appliances and other cold-cure acrylic system workflows for direct polymerization on printed part.
Key Benefits
- Non-adhesion toward acrylic
- No need for separating agent
- Matt surface finish
- Good accuracy
POLYMER PROPERTIES SEPARATION MODEL
Liqcreate Separation Model is specifically engineered for ortho dental model applications, making it exceptionally well-suited for situations where the model comes into direct contact with acrylic. This material is rigid and has non-adhesive properties when in contact with acrylic, ensuring a clean and reliable separation.
|
Description |
ASTM Method |
30 minutes high power LED curing at 60°C Metric1 |
30 minutes high power LED curing at 60°C Imperiall |
|
Flexural Strength |
D790M |
36 MPa |
5.22 ksi |
|
Flexural Modulus |
D790M |
1.8 GPa |
261 ksi |
|
Water sorpution |
D570-98 |
0.56% |
0.56% |
|
IZOD Impact (notched) |
ISO 180 |
1.97 kJ/m? |
1.87 ft-lb/in? |
|
IZOD Impact (notched) |
D256 |
12 J/m |
0.89 ft-lb/in |
|
Shore D Hardness |
D2240 |
74 |
74 |
|
Separation to ortho acrylic |
Internal method |
Pass |
Pass |
'Post-cured 30 minutes at 60C in the Formlabs FormCure (first generation) curing unit. Material properties can vary with part geometry, print orientation, print settings and posturing settings. Liqcreate Separation Model is not tested on biocompatibility, therefore the material should not be used for applications inside the human body.

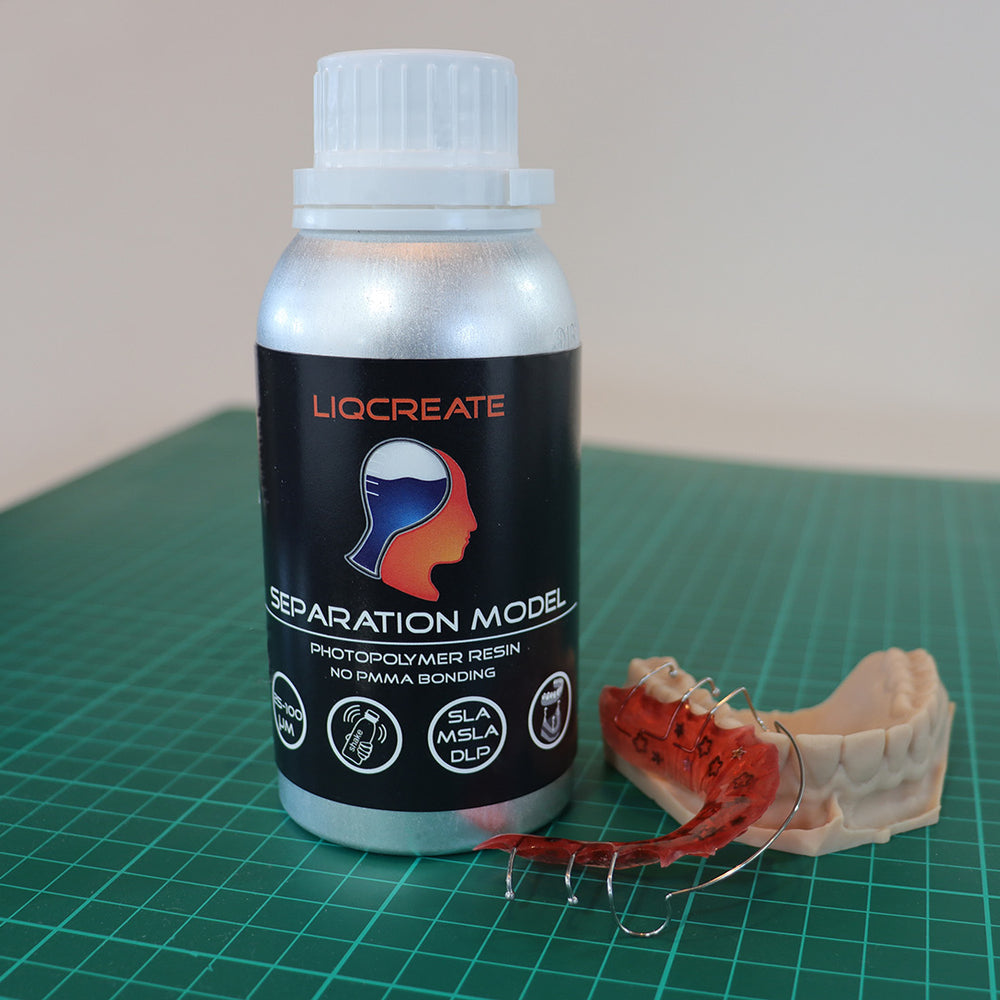

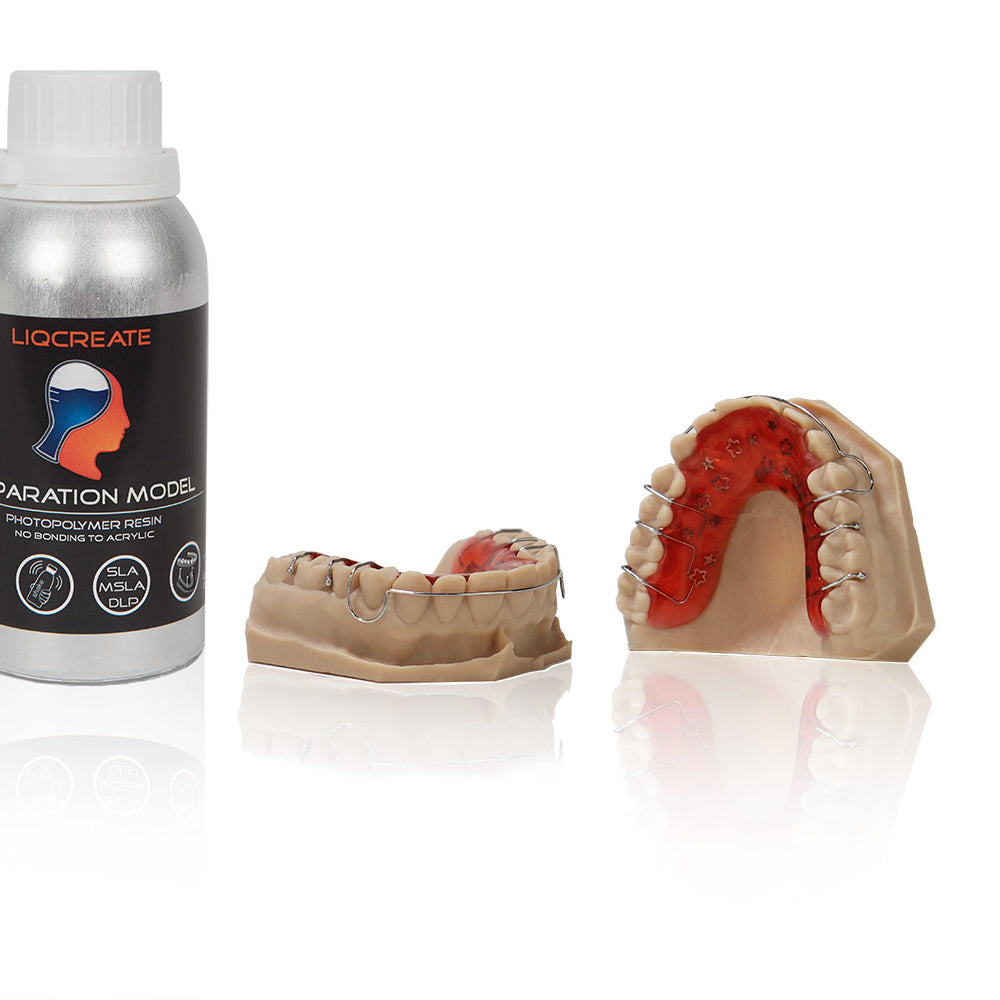

Liqcreate Separation Model - 1kg
All orders are shipped from Canada. Duties, taxes, and tariffs may apply.
