Frequently Asked Questions

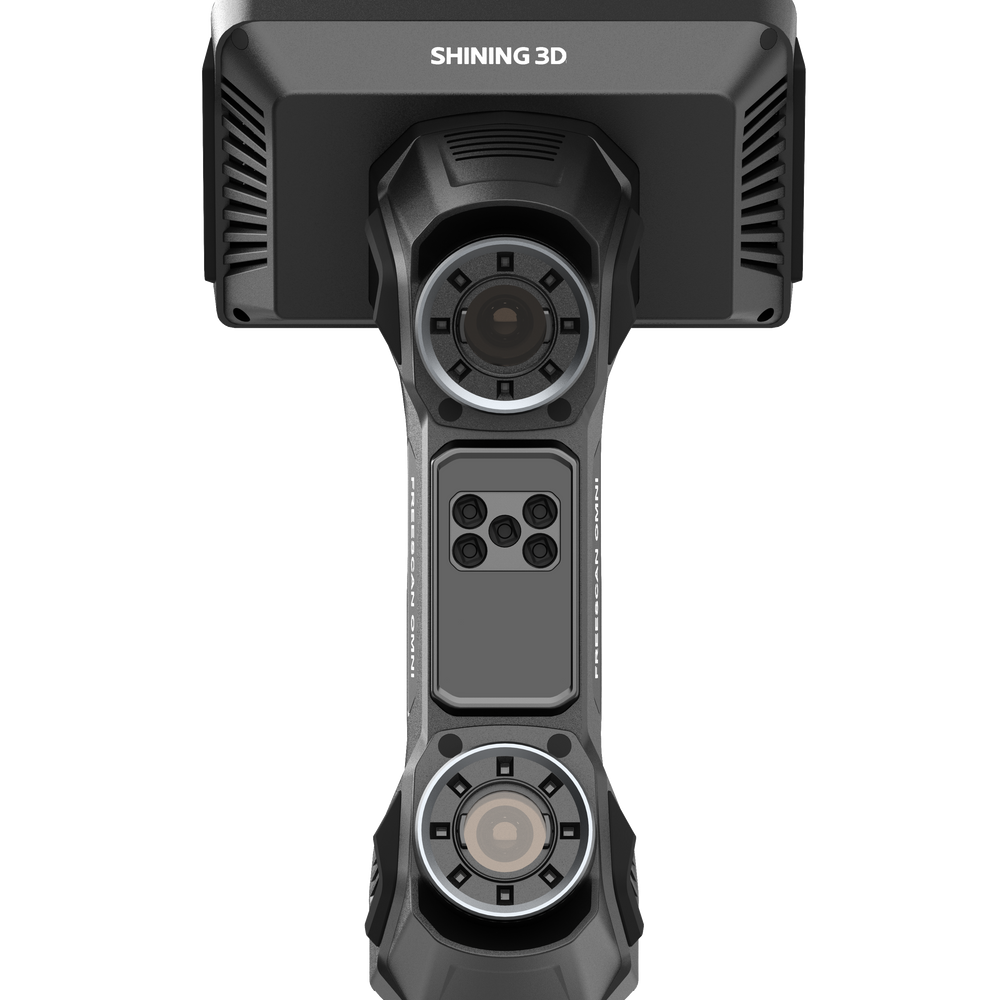

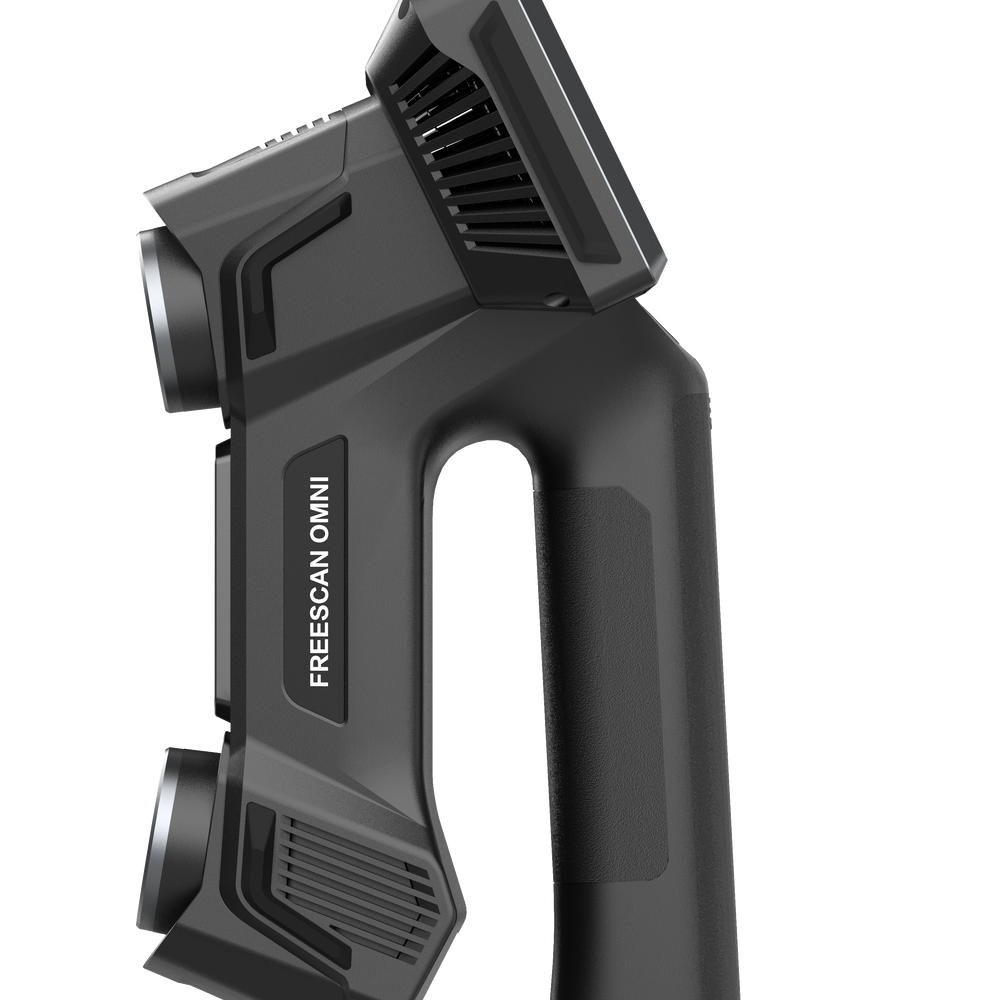

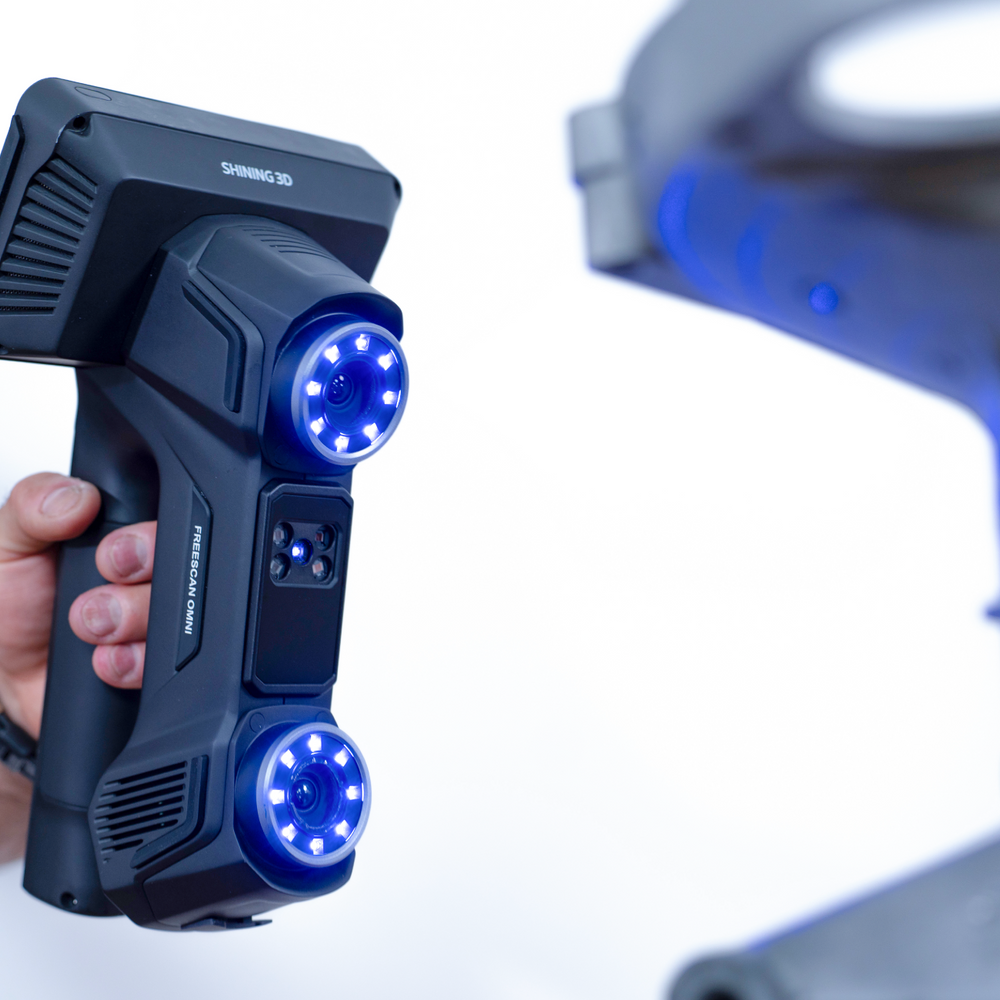

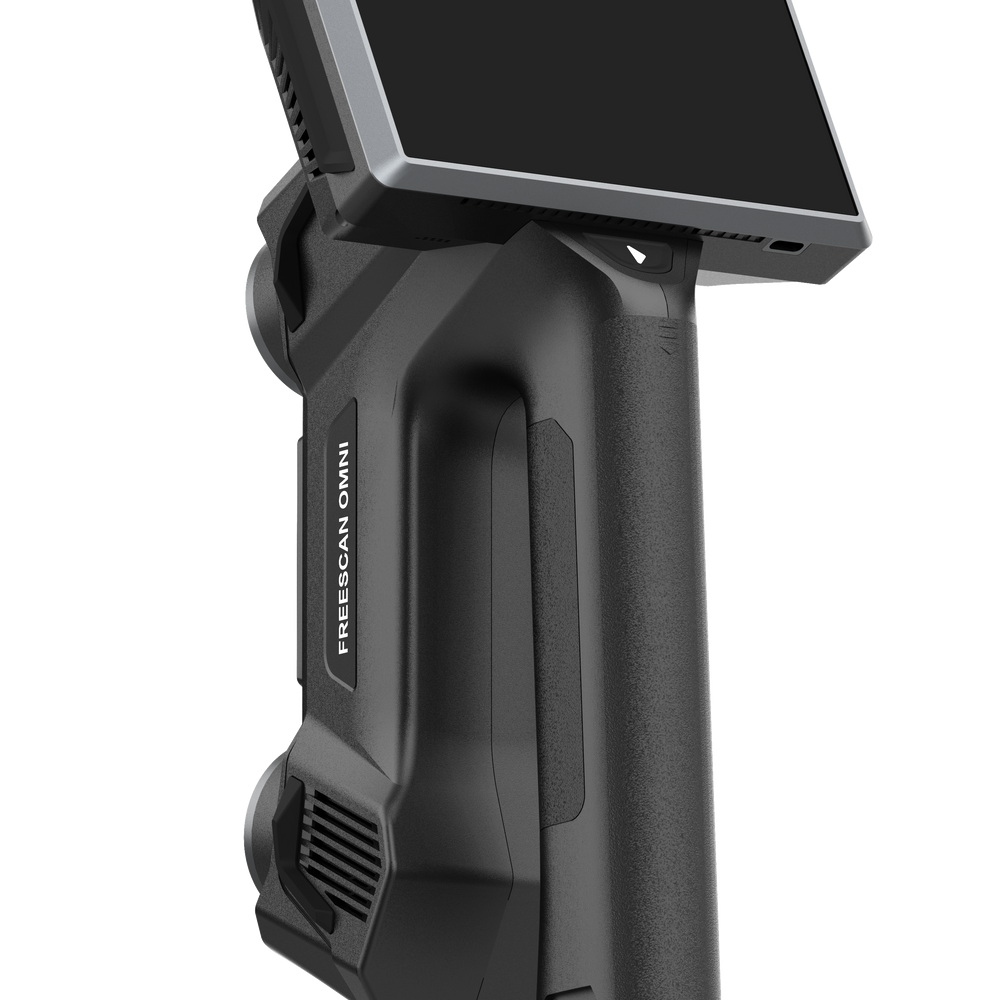

What is the SHINING 3D FreeScan Omni Series?

The FreeScan Omni Series is a wireless standalone metrology 3D scanner designed for industrial inspection, quality control, reverse engineering, and manufacturing workflows. It combines onboard scanning, inspection, and reporting into a single portable device.

What makes the FreeScan Omni different from traditional 3D scanners?

Unlike traditional metrology scanners that require an external computer, the FreeScan Omni performs scanning, meshing, inspection, and reporting directly on the scanner itself using integrated onboard computing.

What accuracy does the FreeScan Omni Series offer?

The FreeScan Omni Series delivers certified metrology-grade accuracy up to 0.02 mm and is verified according to VDI/VDE 2634 and ISO 10360 standards.

Does the FreeScan Omni require markers?

The scanner supports SHINING 3D’s Video Photogrammetry (VPG) technology, which reduces or eliminates the need for coded markers during large-scale scanning workflows.

What types of scanning technology does the FreeScan Omni use?

The FreeScan Omni combines blue laser scanning and infrared VCSEL technology to support fast, accurate scanning across a wide range of industrial applications and surface types.

What industries use the FreeScan Omni Series?

FreeScan Omni is commonly used in automotive manufacturing, aerospace, industrial inspection, reverse engineering, heavy equipment maintenance, tooling verification, and production quality control.

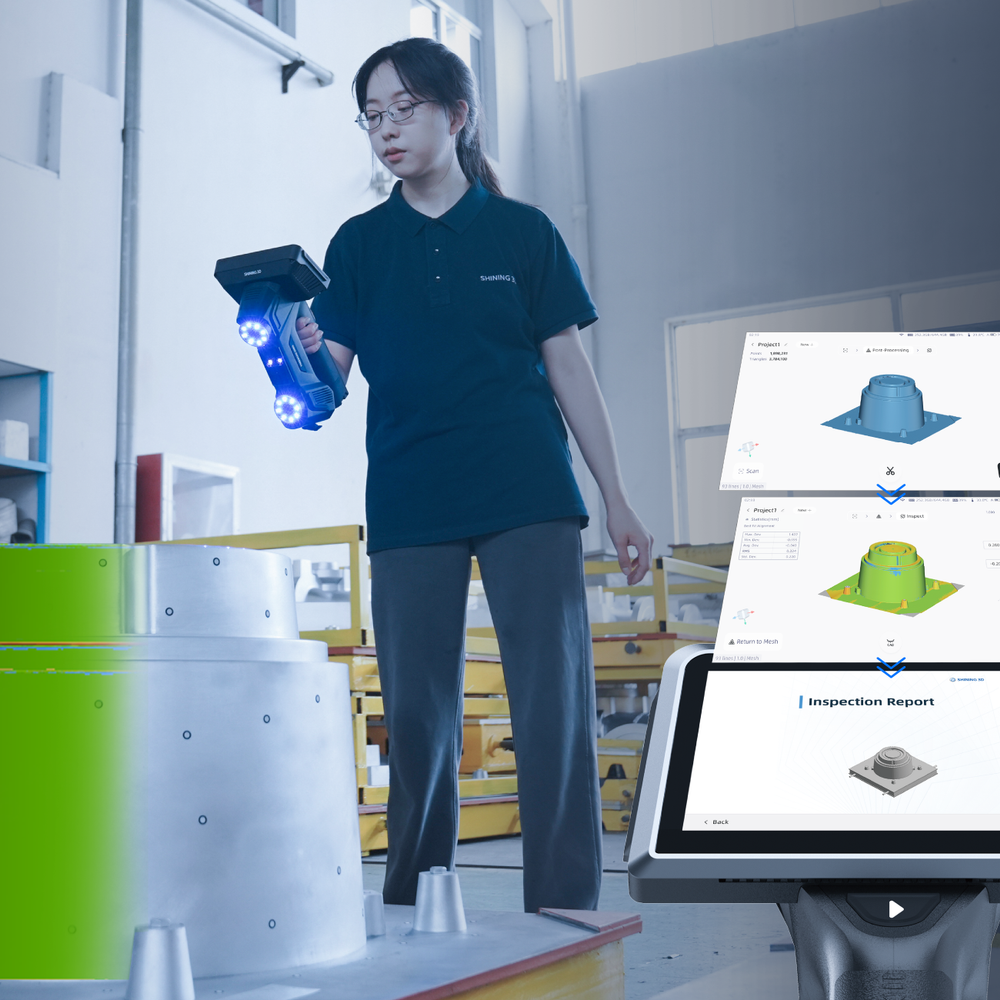

Can the FreeScan Omni generate inspection reports?

Yes. The integrated PTB-certified inspection software allows users to perform on-device inspection analysis and generate professional inspection reports directly from the scanner.

Is the FreeScan Omni fully wireless?

Yes. FreeScan Omni features fully wireless operation with onboard processing, wireless connectivity, and hot-swappable batteries for maximum portability and flexibility.

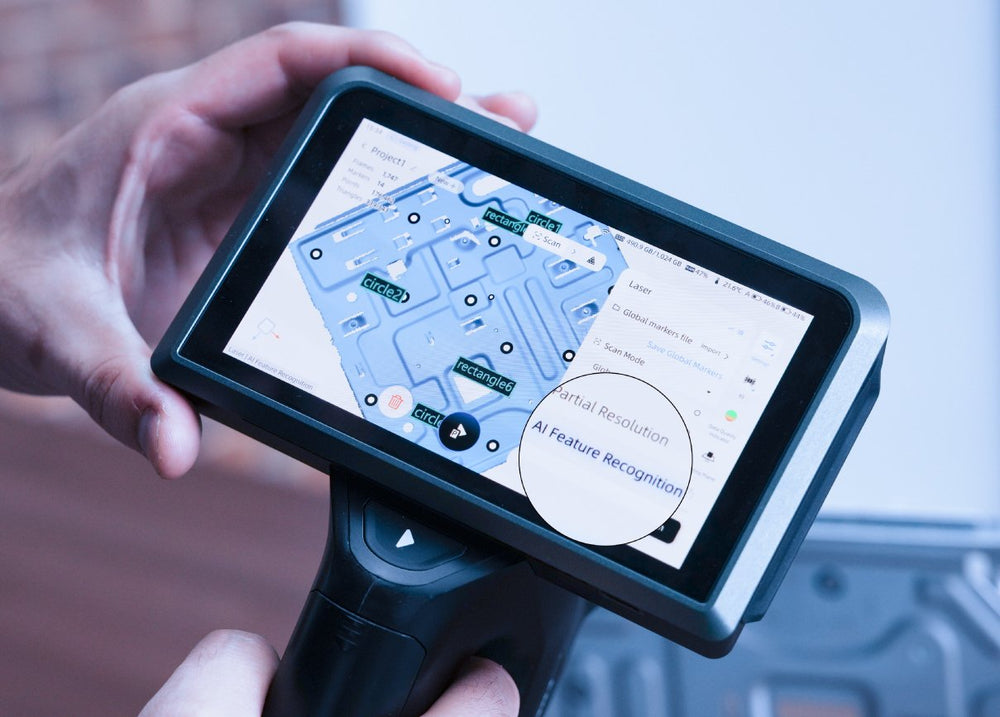

What is AI Feature Recognition?

AI Feature Recognition automatically identifies and measures common geometries such as holes, slots, and edges to improve inspection speed, consistency, and accuracy.

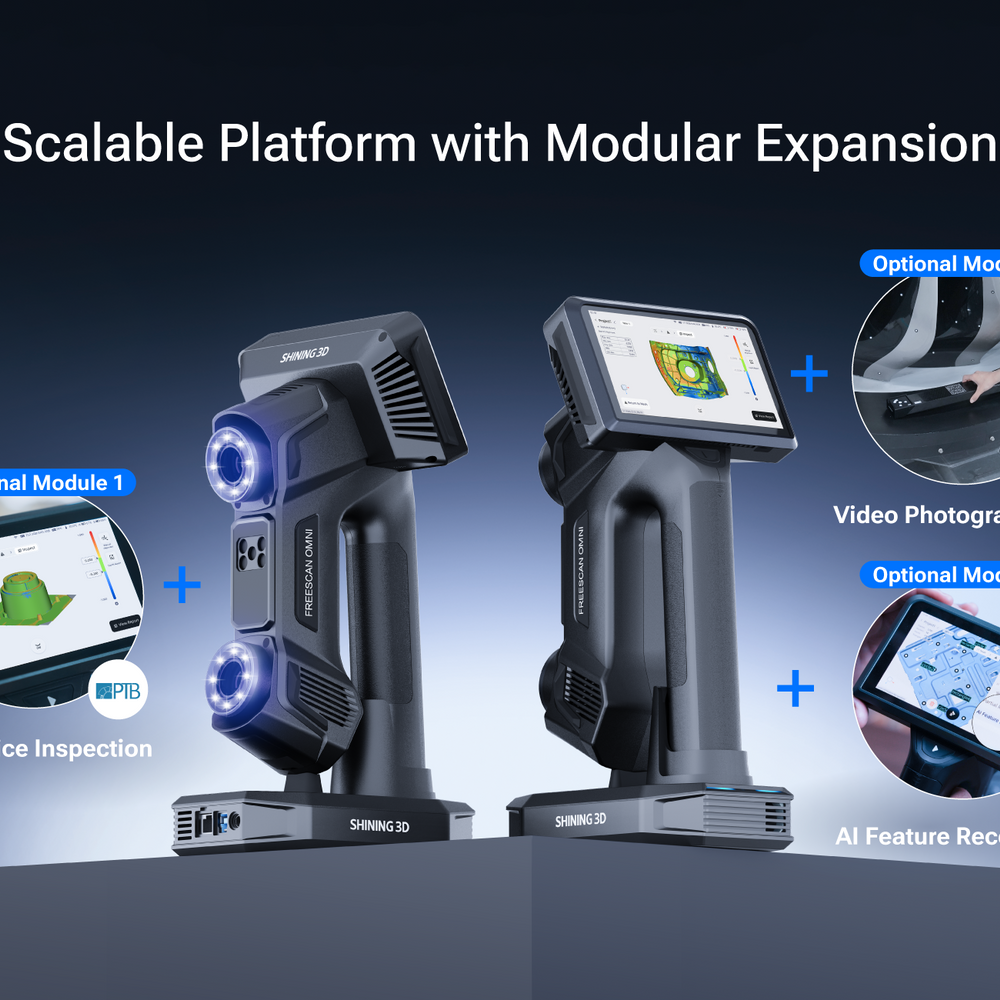

What is the difference between FreeScan Omni and FreeScan Omni Lite?

FreeScan Omni is the fully integrated flagship scan-to-inspect platform with onboard inspection workflows, while FreeScan Omni Lite shares the same hardware foundation with modular expansion options for future upgrades.

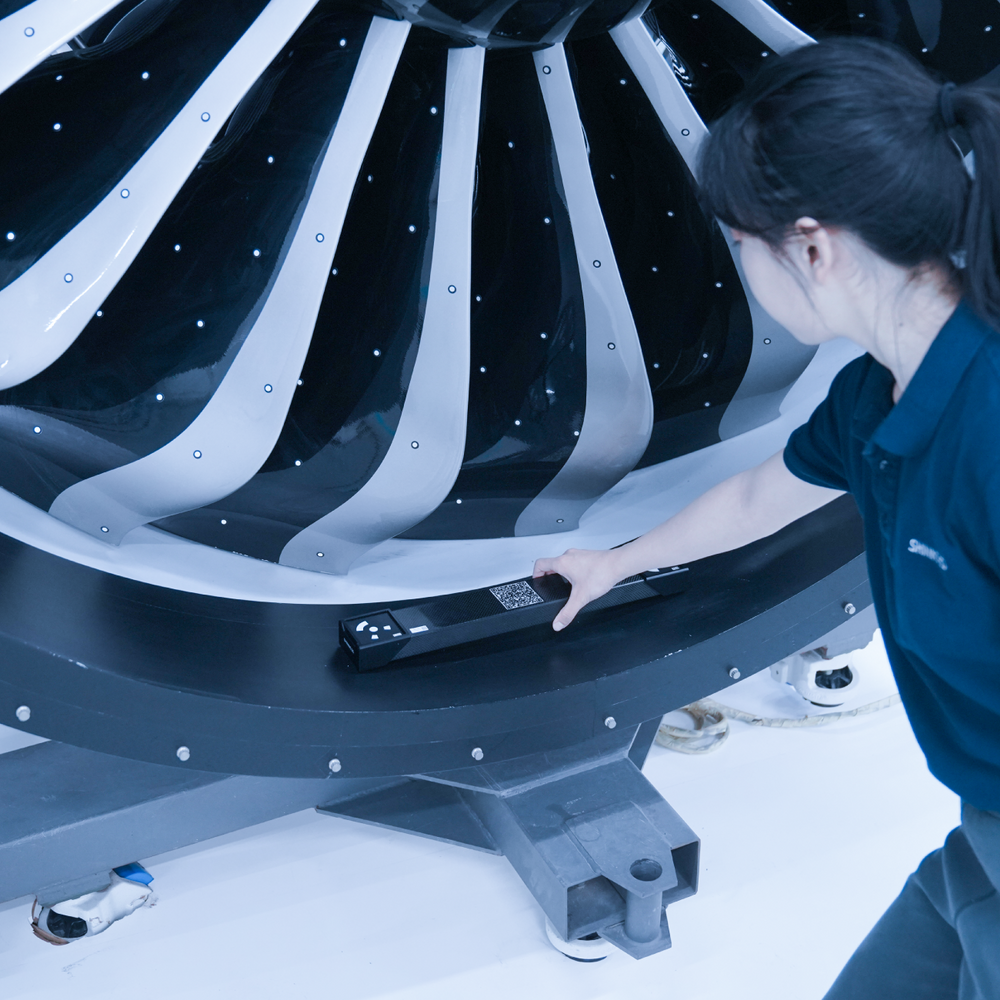

Can the FreeScan Omni scan large objects?

Yes. Integrated Video Photogrammetry (VPG) technology helps maintain volumetric accuracy during large-scale industrial scanning applications.

Is the FreeScan Omni suitable for reverse engineering?

Absolutely. The scanner captures highly accurate 3D scan data suitable for CAD reconstruction, product development, digital archiving, and reverse engineering workflows.
