FreeScan UE Pro features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers.
This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.
/
Barcode: 6970163088983

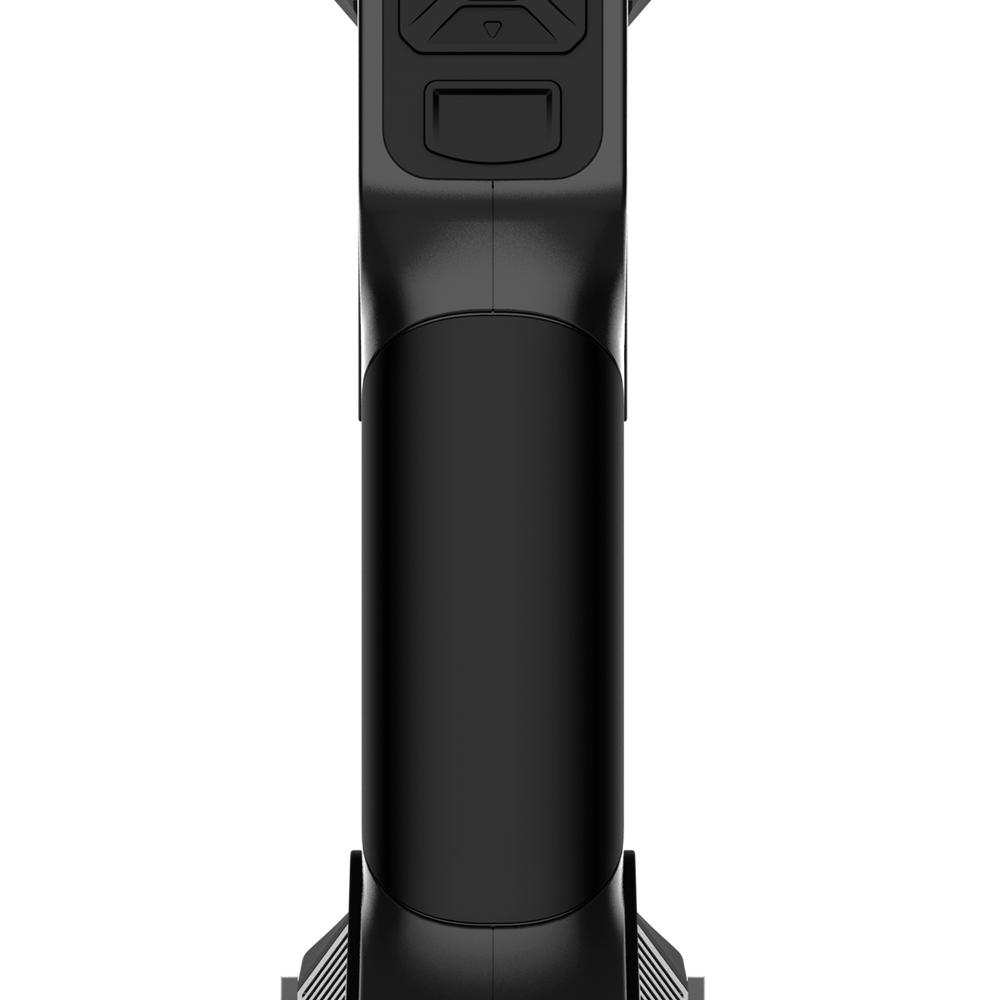

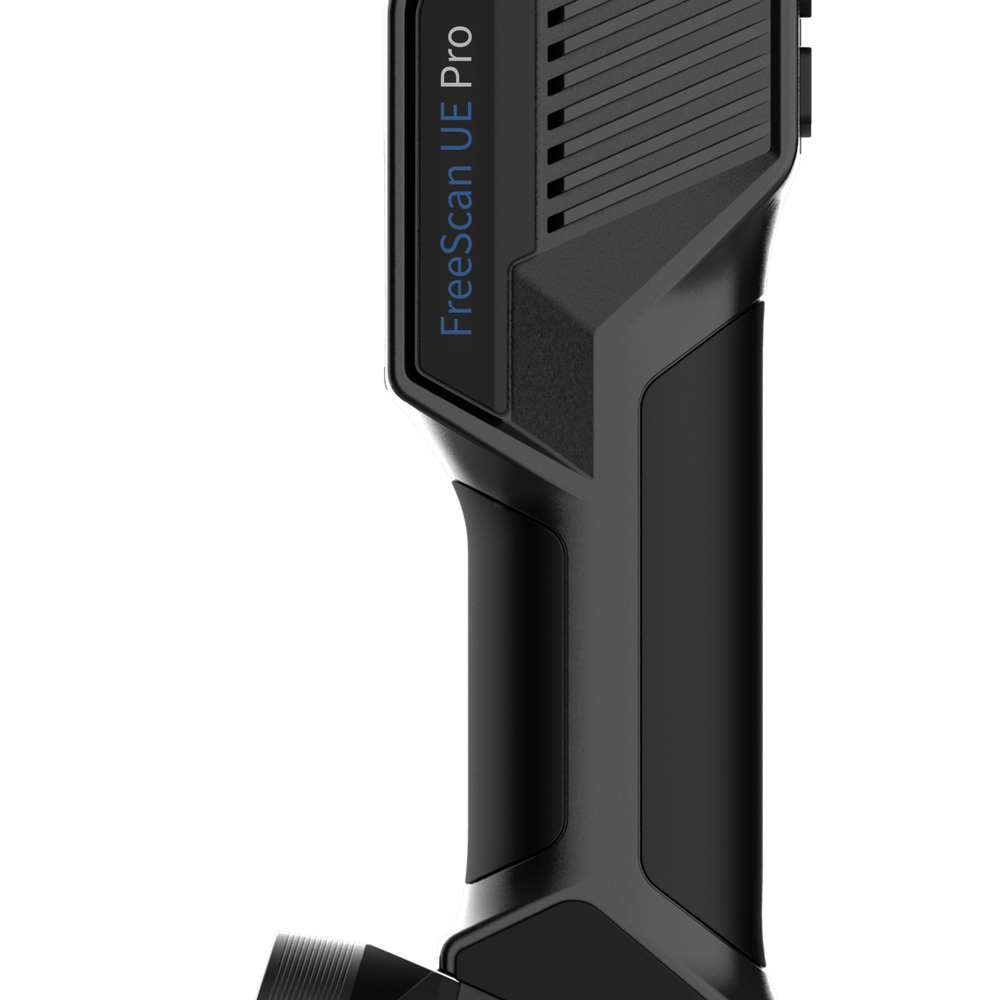

FreeScan UE Pro
Metrology Laser Handheld 3D Scanner
- Accuracy of 0.02 mm with markers
- Speed up to 1,850,000 points/s
- 3 scanning modes and built-in photogrammetry
- Reddot winner 2024
For High Precision Metrology-Grade Inspection
FreeScan UE Pro inherits the high-precision, metrology-grade accuracy, and lightweight design of FreeScan UE, while enhancing the ability for fine scanning and global precision control of large-scale workpiece scanning.
Metrology-Grade High Accuracy
Accuracy of 0.02mm, delivers consistent scanning results with high precision.
Global Precision Control
Integrated video photogrammetry (VPG) function no need to apply coded markers, quickly locks the spatial position of the marker frame.
Multiple Scanning Modes
13 cross laser lines to scan large objects quickly, 7 parallel laser lines to scan fine details and single laser line for deep hole and pocket area scanning.
Easy Operation
Inheriting the lightweight and ergonomic design of the UE series, the user-friendly scanning software enables an easy operation and shortens the learning curve.

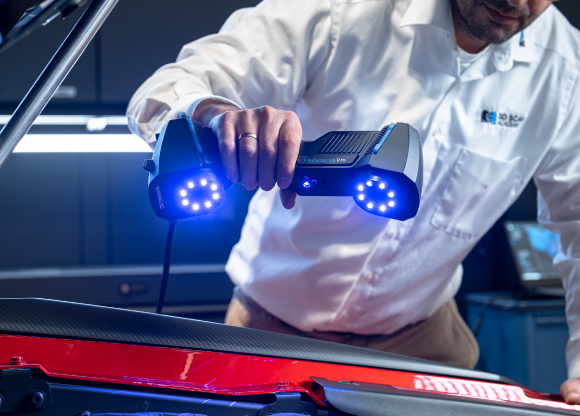

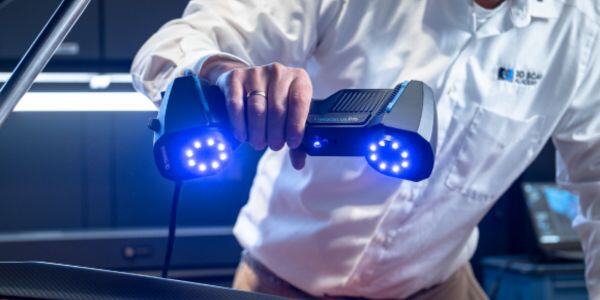

High-Accuracy Scanning for Small to Large-Scale Objects
With built-in photogrammetry, the FreeScan UE Pro achieves high accuracy and exceptional detail capture, accommodating objects of diverse sizes from small to large. It seamlessly addresses a wide array of industry applications and performs exceptionally well, even in outdoor scanning environments.

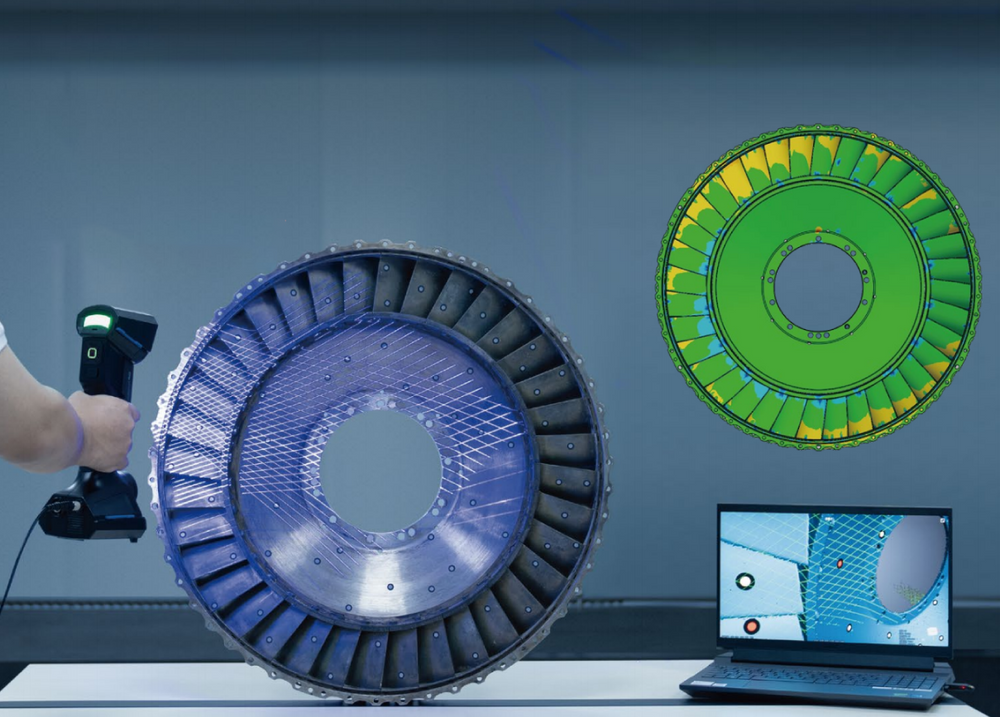

Unrelenting Accuracy and Precision
For quality control, inspection, and reverse engineering, its 0.02 mm accuracy* and high-precision performance ensure consistent, dependable results.
*Based on VDl/VDE 2634, ISO 10360, sphere-spacing errors are assessed with traceable length artifacts and markers by measuring these at different locations and orientations within the working volume. Assessment takes place in an accuracy lab certified to ISO/IEC 17025 standards under controlled environmental conditions: temperature maintained at 20 ± 0.5 ℃ and humidity between 40% to 60% RH.
Video Photogrammetry (VPG)

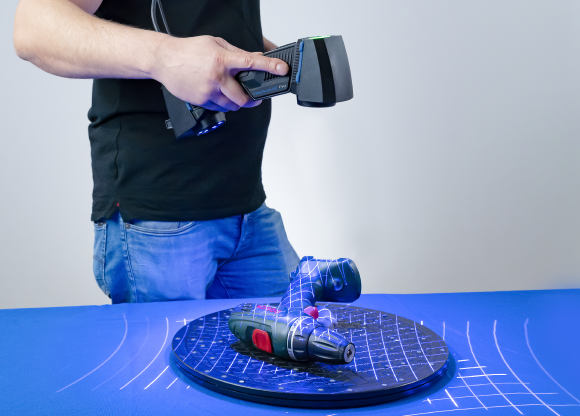

Multiple Scanning Modes
-
26 laser lines: 600x550 mm FOV for fast 3D scanning
- 7 laser lines: Industrial-grade, 3.2 MP cameras to capture exceptional detail
- 1 single laser line: Optimized camera angle for pockets and holes

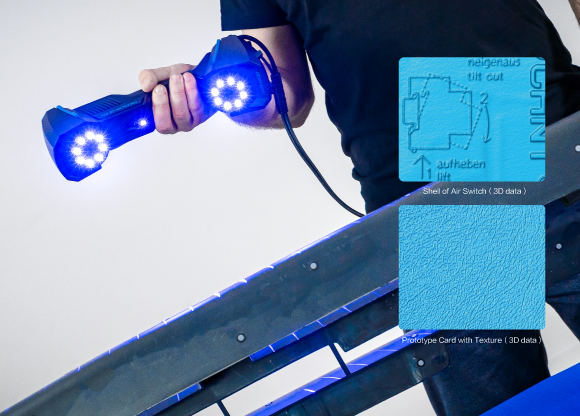

Fine and Rich Details
Equipped with 3.2 Megapixel higher resolution cameras and 7 parallel laser lines, the FreeScan UE Pro facilitates detailed object scanning, ensuring accurate restoration of fine details.

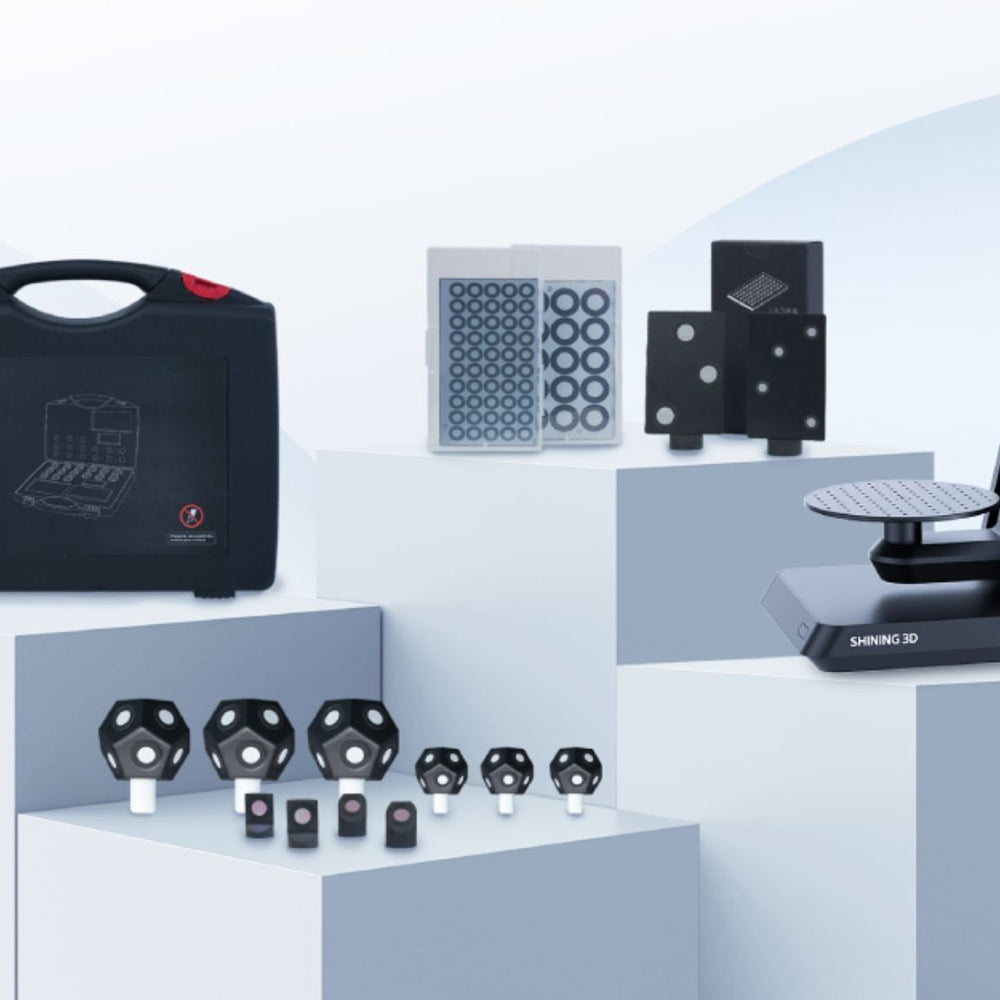

Metrology Kit
Magnetic marker balls for fast setup and easy positioning, Metrology Kit is perfect for handheld laser 3D scanners with smooth scanning workflows.

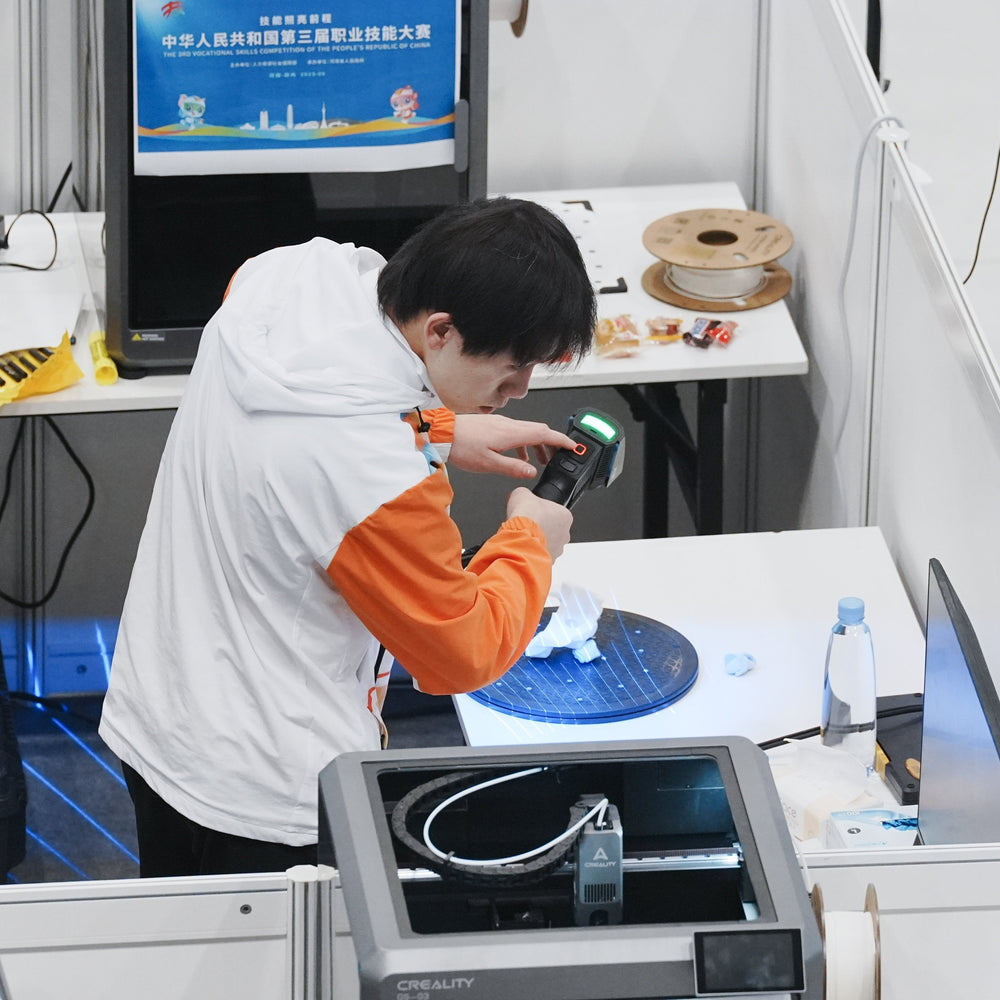

WorldSkills Designated Competition Model
FreeScan UE Pro is designated as the official model for the Additive Manufacturing Skill in WorldSkills Competitions, helping competitors quickly digitize physical parts and transform them into accurate models for advanced additive manufacturing applications.

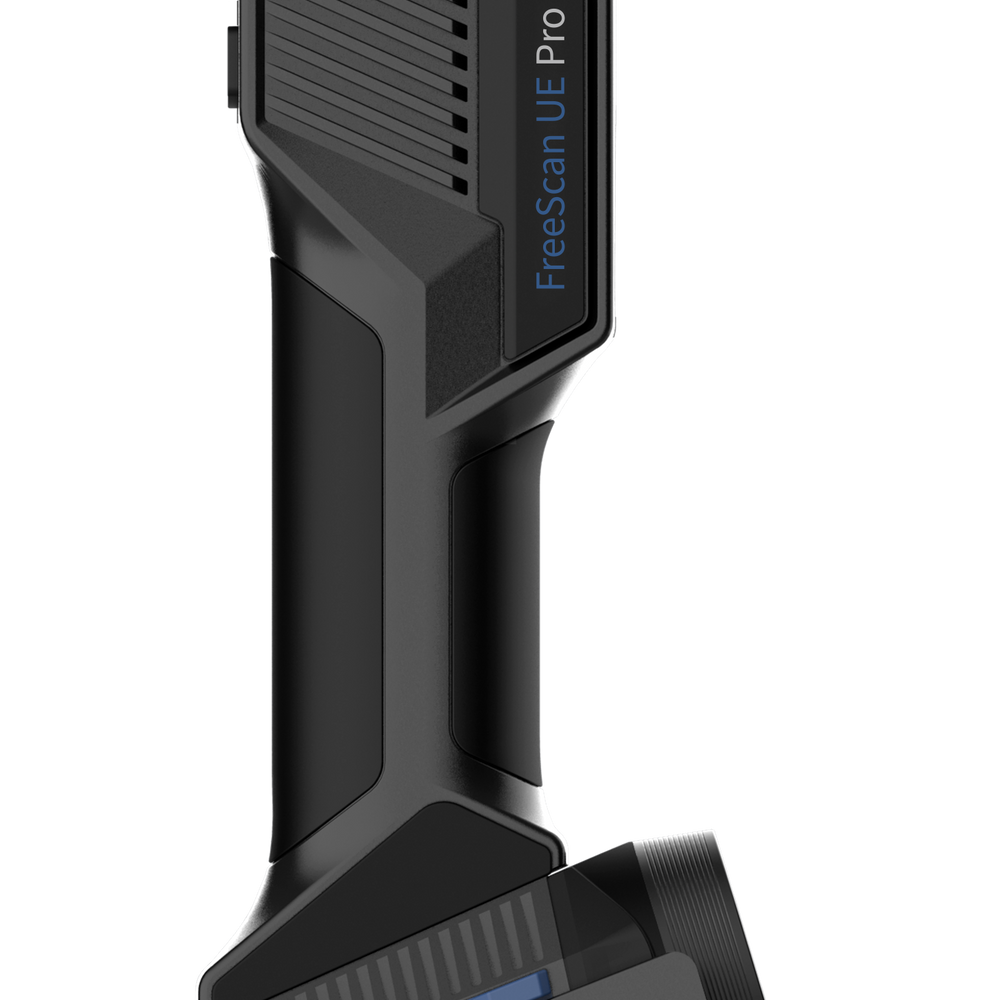

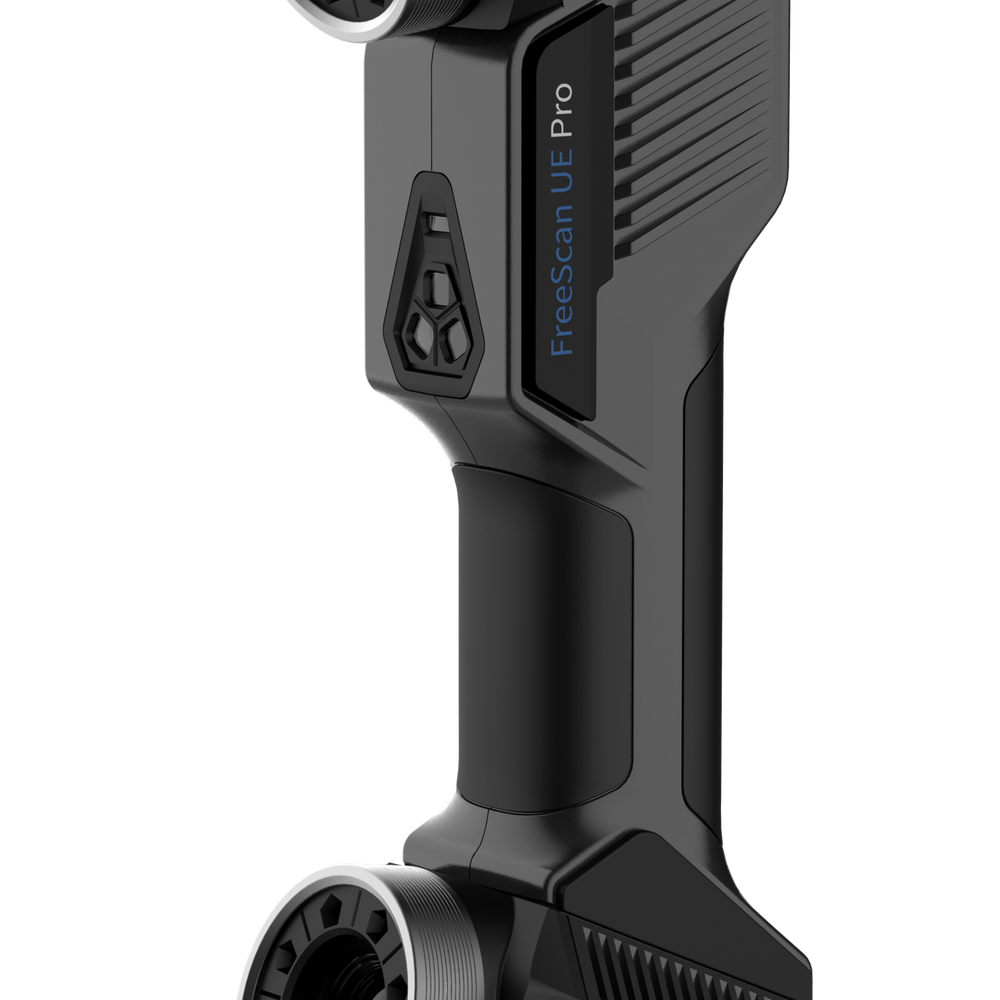

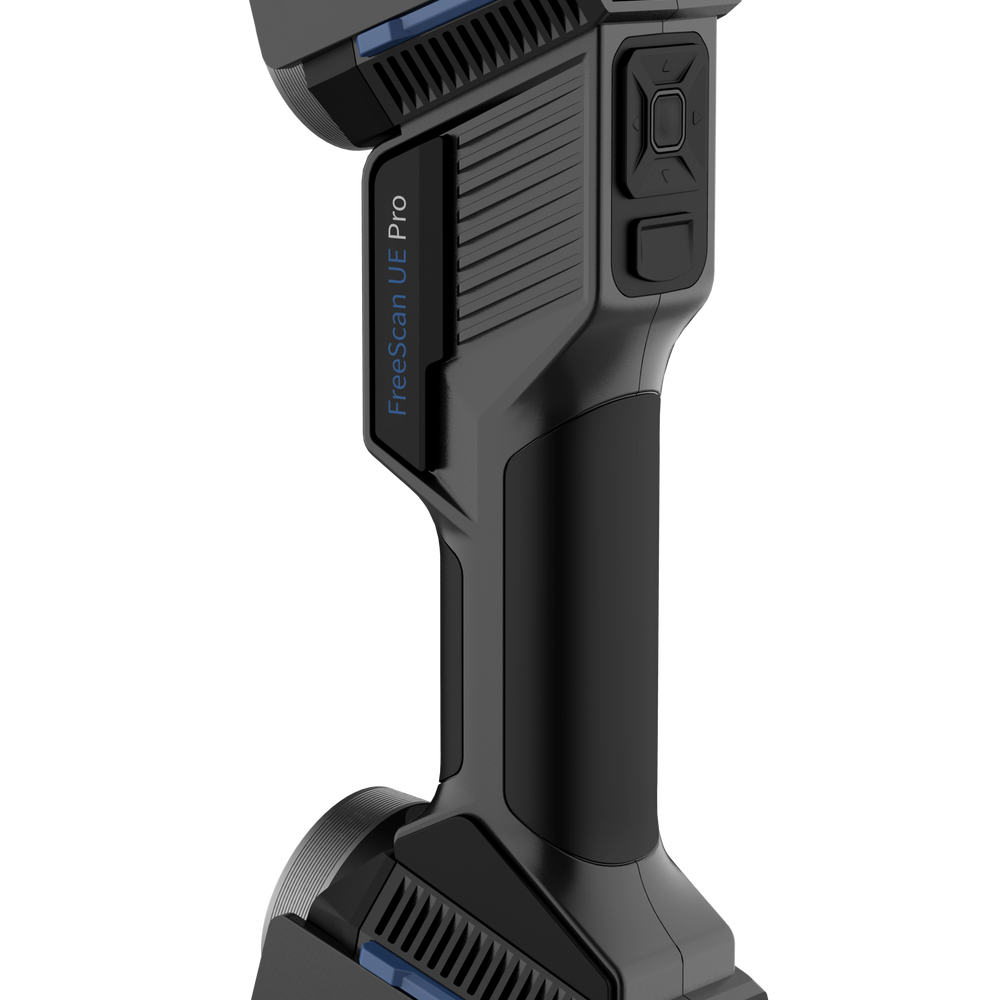

Shining3D FreeScan UE Pro
