Key Features
Dissolve 3D printed PVA up to 4x faster.

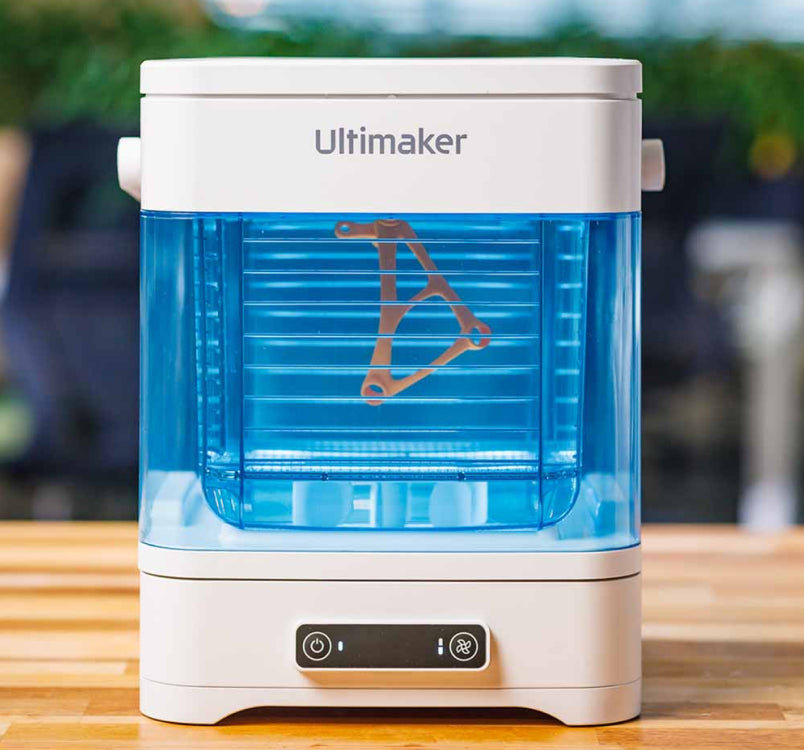

Make printing complex designs faster and easier. The UltiMaker PVA Removal Station dissolves support material quickly and effectively, keeping operator time to a minimum and increasing productivity.
Rapid prototyping just got faster.
Remove PVA up to 4x faster.
Less time waiting for parts
High-speed water circulation driven by a magnetic rotor removes PVA much faster than motionless water – even from hard-to-reach cavities. So you have your parts post-processed and ready to use as soon as possible.
Low effort. High productivity.
Reduce operator time up to 80%
The PVA Removal Station requires only a few minutes of operator time per print, and almost zero maintenance. Just press the start button. Leave it to spin. And collect your print when it’s ready.
Rotor-powered water circulation.
Choose 100 or 225 RPM circulation depending on the fragility of your part. Every two minutes, the rotor changes direction to push water evenly against the model.
Prints stay safe and submerged.
A rinsing basket keeps your print in place and completely submerged while dissolving, then lifts up for mess-free draining and print removal.
Easy to monitor progress.
A transparent, illuminated container lets you easily follow the PVA removal process and see when your part is ready. Plus, a saturation indicator shows when to refresh the water.
Specifications
| Category | Property | Value |
|---|---|---|
| Properties | Container volume | 13.7 liters (3.6 US gal) |
| Properties | Maximum part size | W 200 x D 230 x H 165 mm (W 7.8 x D 9 x H 6.4 in) |
| Properties | Supported materials | Optimized for: PLA and PVA Also suitable for: PETG, Tough PLA, Nylon, or CPE in combination with PVA (Also supports equivalent third-party materials) |
| Properties | Supported solvents | Water |
| Properties | Rotor speed | 225 RPM (normal) 100 RPM (low) |
| Properties | Operating sound | < 50 dBA |
| Physical dimensions | Dimensions | W 303 x D 325 x H 374 mm (W 11.9 x H 12.8 x D 14.7 in) |
| Physical dimensions | Dimensions with handle extended | W 303 x D 325 x H 528 mm (W 11.9 x D 12.8 x H 20.8 in) |
| Physical dimensions | Net weight | 6.35 kg (14 lbs) |
| Physical dimensions | Container weight (when empty) | 4.2 kg (9.3 lbs) |
| Physical dimensions | Shipping box dimensions | W 400 x D 400 x H 500 mm (W 15.7 x D 15.7 x H 19.7 in) |
| Physical dimensions | Shipping weight | 8.5 kg (18.7 lbs) |
| Ambient conditions | Operating ambient temperature | 15 - 32 °C (59 - 90 °F) |
| Ambient conditions | Non-operating temperature | 0 - 32 °C (32 - 90 °F) |
| Ambient conditions | Relative humidity | 10 - 90% RH non-condensing |
| Electrical requirements | Voltage | 100 - 240 V AC |
| Electrical requirements | Frequency | 50 - 60 Hz |
| Electrical requirements | Power | 38 W |
| Service and support | Warranty period | 12 months |
| Service and support | Expert support | Market-leading technical support via email, phone, or from our global community is available to you in your language and timezone. |
| Service and support | Extended support | Online resources, extensive manuals, material technical and safety data sheets (in multiple languages), a detailed knowledge base, and much more. |
