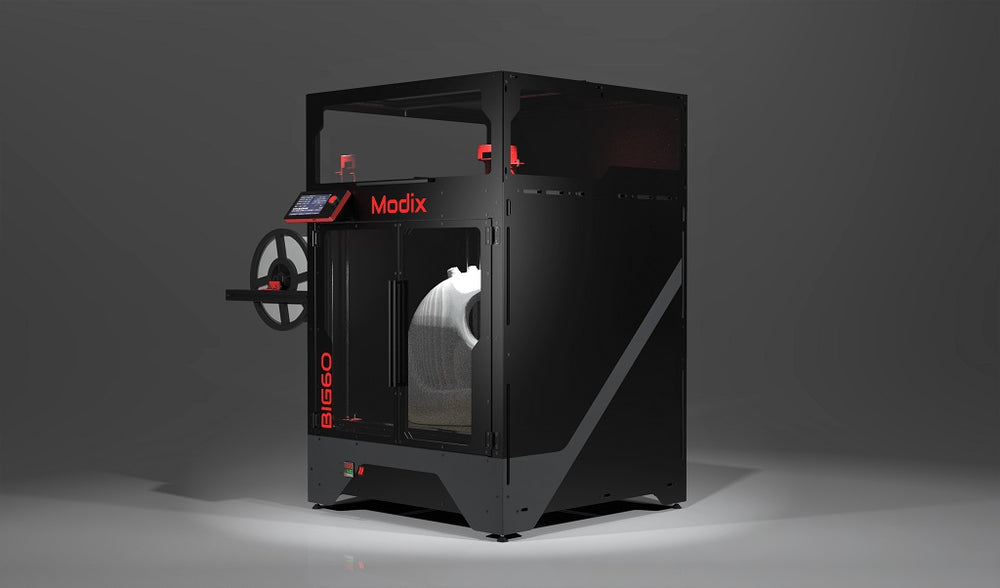

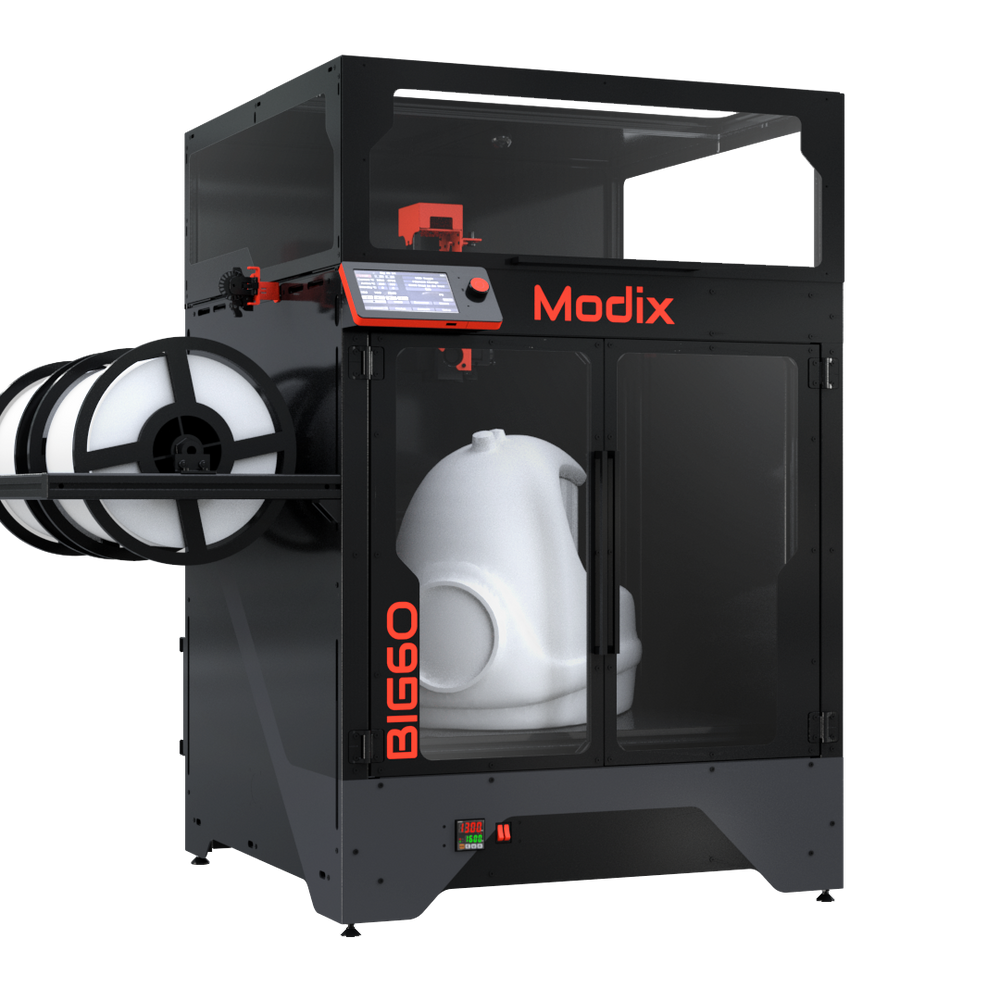

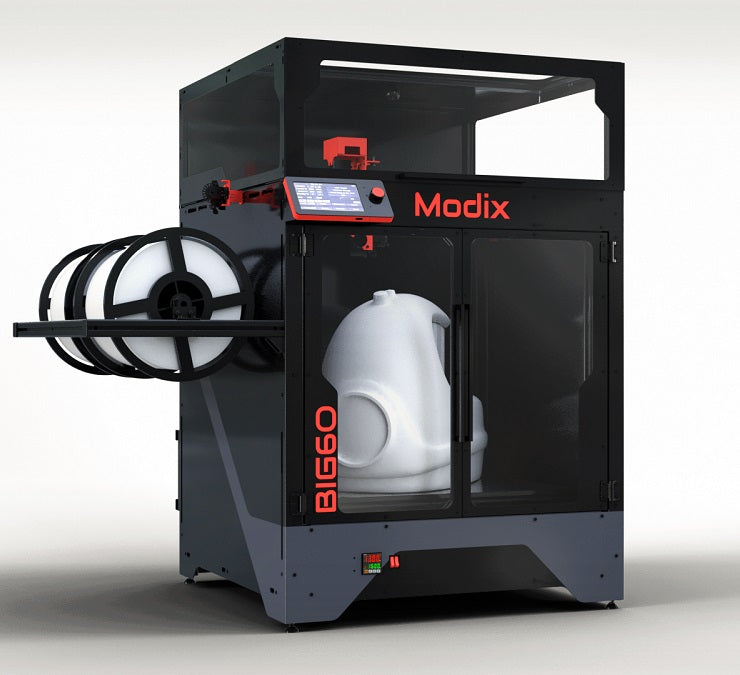

Modix BIG-60 v4 3D printer is our flagship 3D printer model. Introduced back in 2017 and now in its fourth iteration. Modix BIG-60 presents a competitive mixture of large build volume, premium components, and a competitive price. As before, the improvements made in V4 are shared with all other models. New versions are designed with backward compatibility in mind, therefore owners of previous versions enjoy periodical performance improvements and long-term high returns on their investments.
BIG-60 specifications:
- Delivery: self-assembly kit unless assembly service is selected.
- Enclosure: Optional
- IDEX – Secondary print head – optional
- Z Axis Guides: Smooth rods, Hiwin rails – optional
- Additional add-ons are available below.
- The price includes 12 months of warranty and lifetime support. The warranty does not include degradable (PEI sheet and nozzles) and consumables. The warranty can be extended up to two additional years, please select the desired extension below.
- Shipping cost is a regional flat fee that should be selected at the bottom of this product page after you select the required components.
- Ordering add-ons only (without a printer), will require an additional shipping fee.

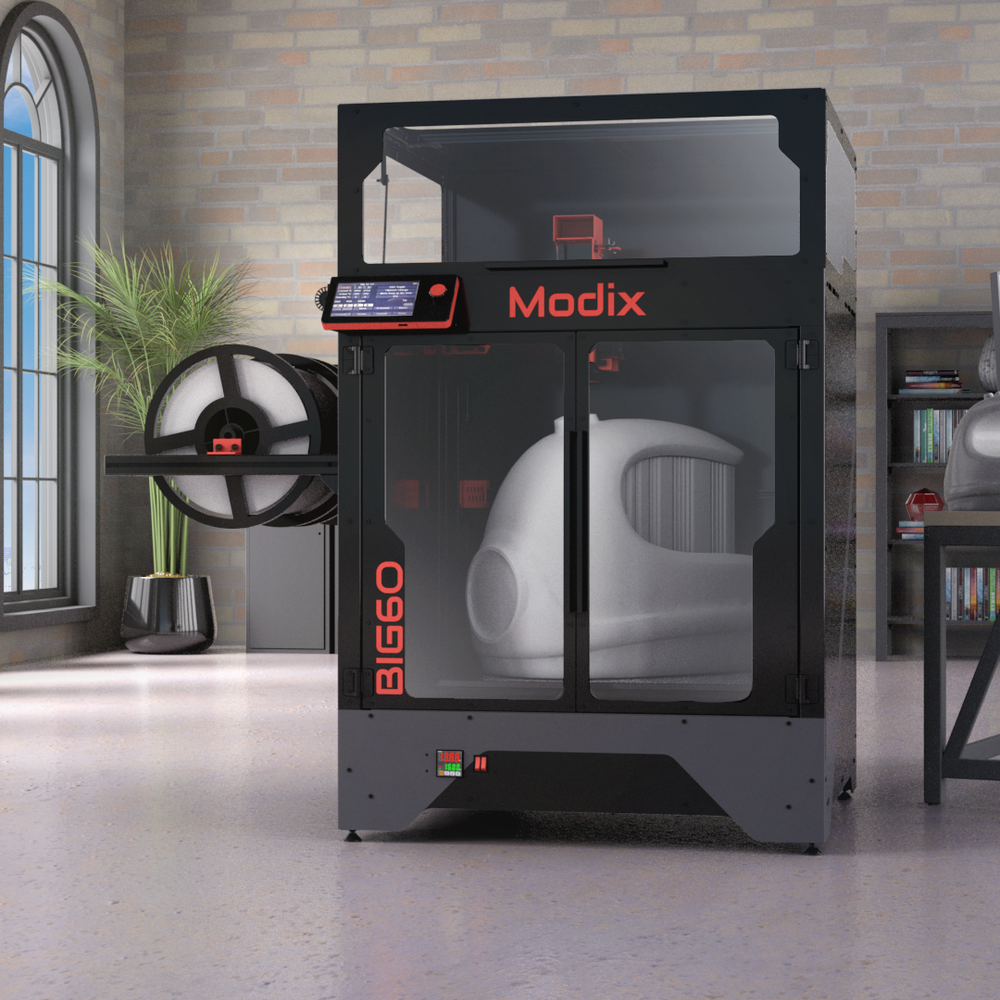

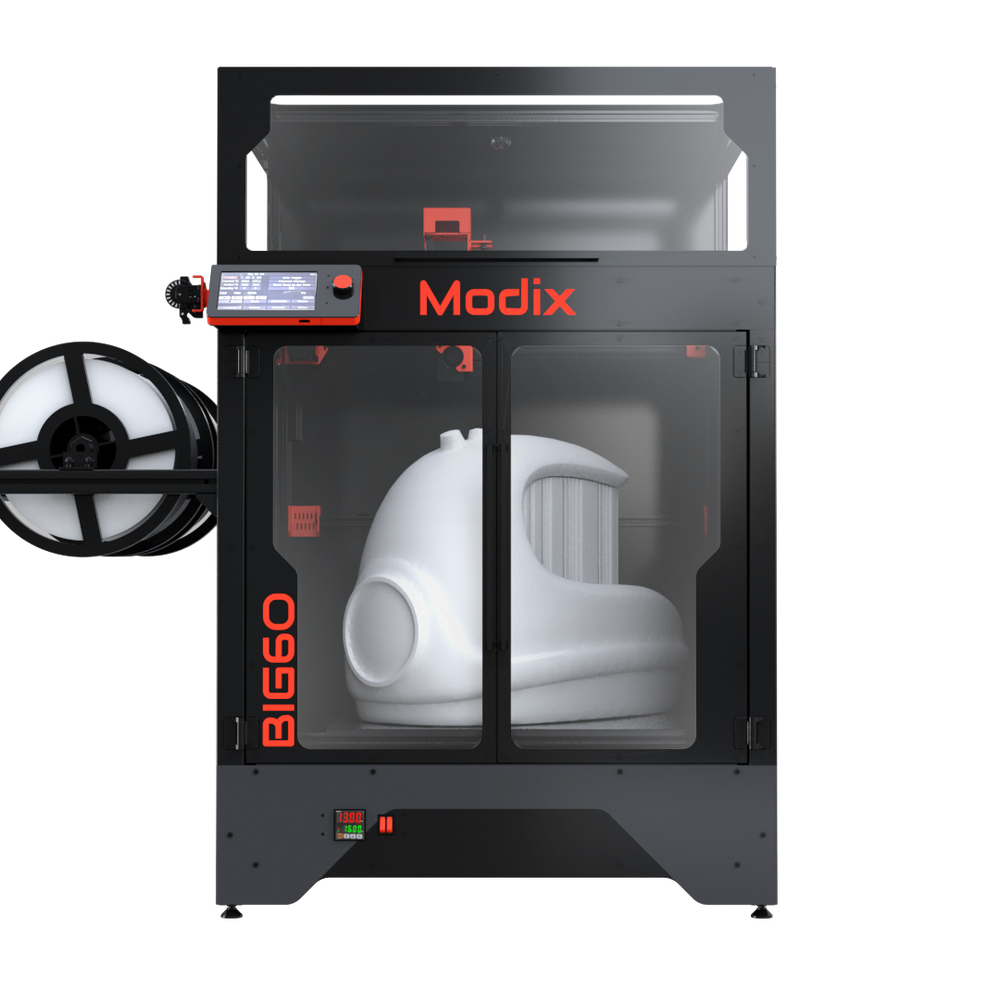

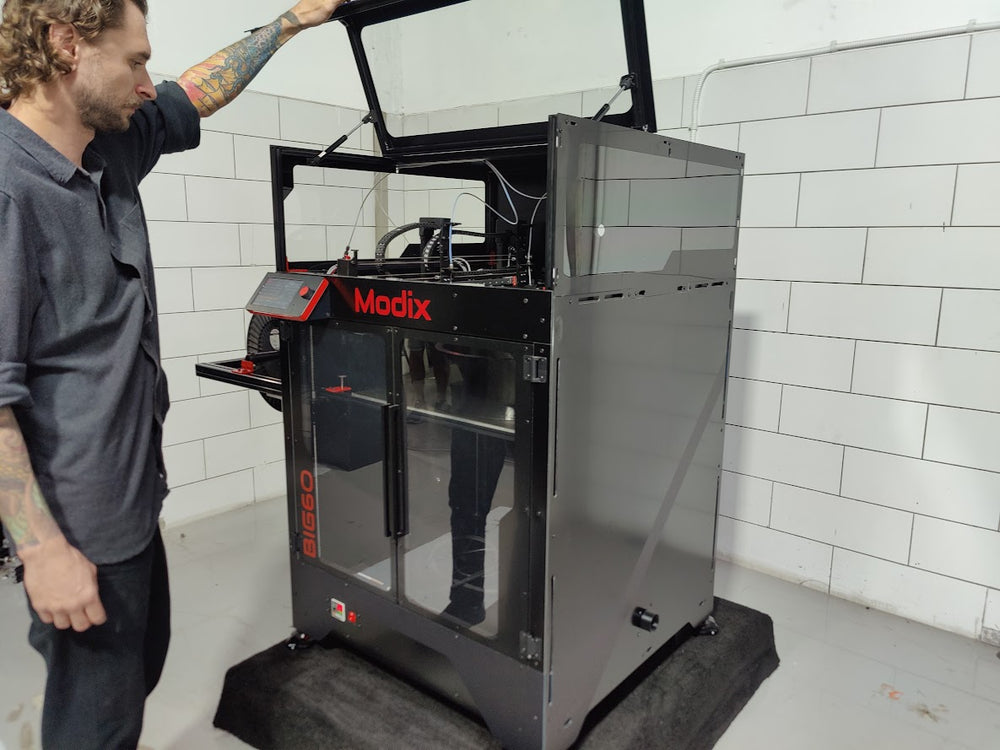

Fresh New Design & Improved Enclosure
The new Modix Generation 4 enjoys a freshly updated design and a modern logo font. In addition, the enclosure has been improved by adding the following features:
- Pneumatic top lid
- Rear maintenance opening hatch
- Sturdy door hinges
- Door and lid sealing strips
- Improved internal led lighting

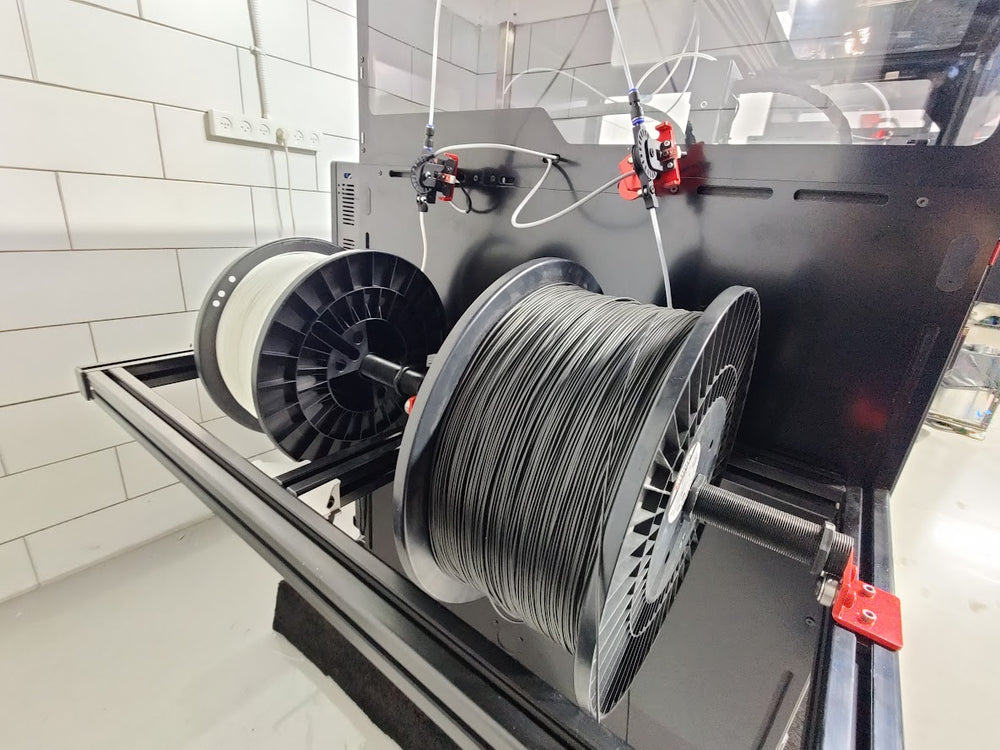

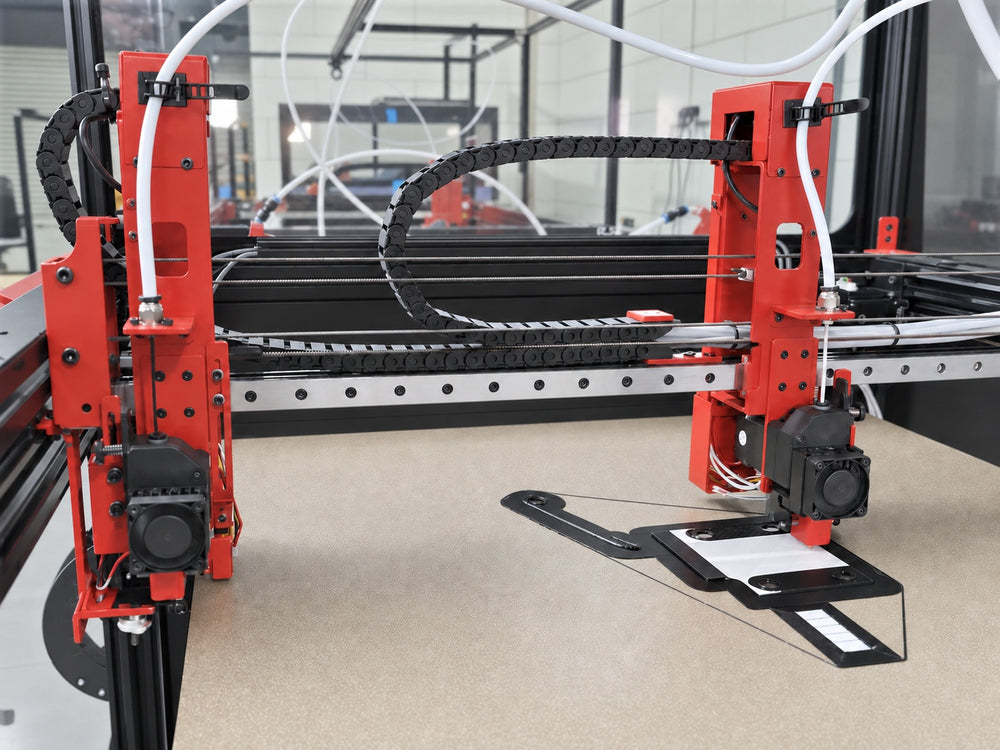

IDEX dual printing add-on
“IDEX” stands for independent dual extruder, where each extruder is independently controlled. Meaning, while the active extruder is printing, the second extruder is “parked” outside the printing area. Therefore, printing advanced models with
internal geometries are made possible more easily, by using water-soluble filament.
The IDEX is sold as an add-on in all generation 4 printers.
It includes:
- Secondary printing subsystem: Griffin print head, clog detector, PTFE, spool mount.
- Motion system: secondary Y-axis motor with the required components (belts, pulleys, etc.).
- Metal brackets for both Y axis and print heads
- Wires, drag chains, and optical end-stops.
Fully automated calibration
With Generation 4, all our line of 3D printers now come with the electronic expansion board named “Duex 5” (before, this was provided by default only with BIG-Meter and BIG-180X models).
By using Duex 5, a dedicated stepper motor driver is allocated for each Z and X-axis motor. As a result, Modix printers now offer a full set of automated calibration routines to all Generation 4 models, including automated bed tilt, bed leveling, gantry alignment, and Z offset calibration.
Fast 3D Printing
Modix’s Generation 4 printers are capable of printing significantly faster than before. Travel
speed of up to 350 mm/s, and high quality printing at 100 mm/s and higher
speeds for printing at draft quality.
This higher print speed has been made possible thanks to strong NEMA 23 motors on the X-axis instead of NEMA-17 motors. In addition, the weight has been reduced on the Y axis as the weight of one motor is split now into two independent ones, using the IDEX setup.
Emergency stop button
Modix Generation 4 models are all equipped with an emergency stop button. The stop button resets the Duet controller and stops printing immediately.

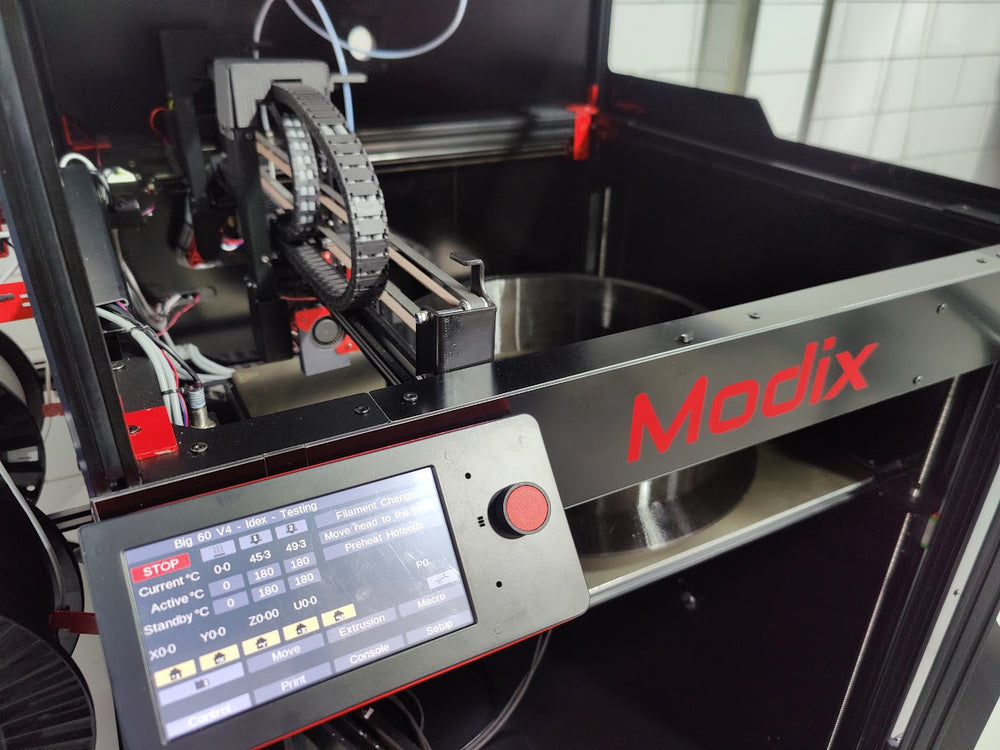

Frontal power switch, tilt screen & emergency button
The taller printers, BIG-Meter and BiG-120Z now have some add-ons by default:
- Tilt screen – Mounted on an articulated arm, the tilting touch screen provides easier access to information and commands for customers at different heights. It is also very convenient to use during system calibration: you can rotate the touch screen for easy access when you are working and looking at the print head performance.
- Frontal secondary power switch – this feature is very convenient if the printer is located in a tight corner, or in between other equipment.
- Large secondary reset button – improves accessibility to the reset button.
Improved Z axis
Modix Generation 4 3D printers have stronger Nema-23 motors and CNC-machined brackets that hold the bed firmly and at a higher level of accuracy.
Optical end-stops
End-stop switches are now upgraded to optical switches in all Generation 4 printers. Optical switches are more accurate and have a high level of repeatability over time. This is especially important for job recovery after a power outage.

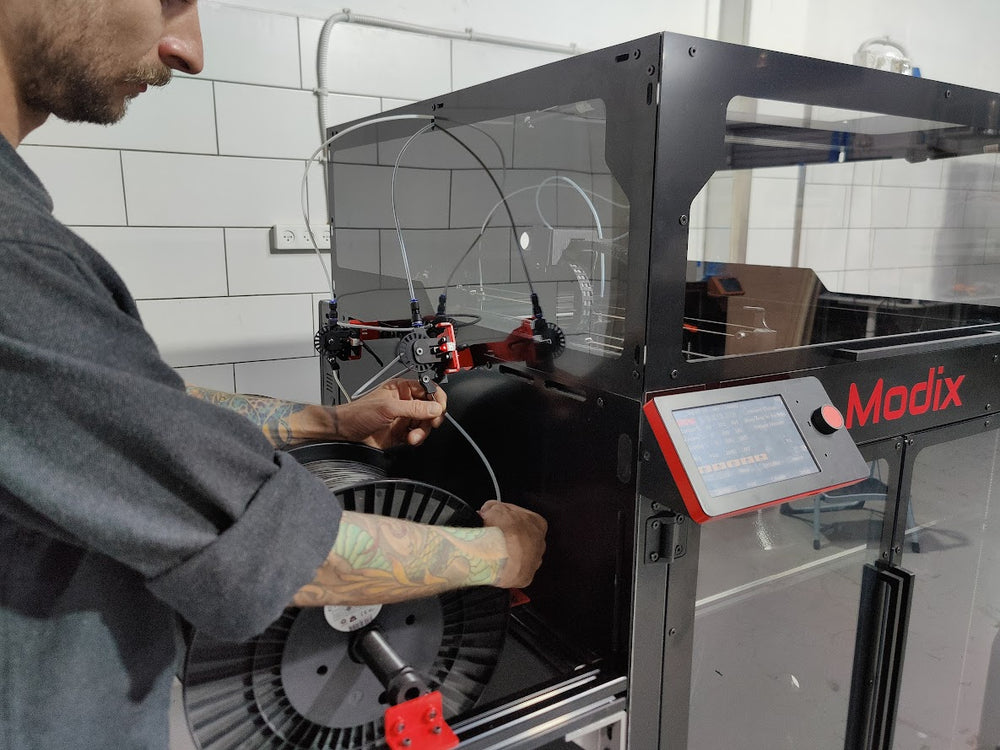

Improved PTFE management
With Generation 4, the PTFE tube rests in a roller guide that ensures its most relaxed position and as a result, this reduces the friction inside the tube.
| Specification | Details |
|---|---|
| Product | Modix BIG-60 V4 |
| Product Type | Large-Format Industrial FDM/FFF 3D Printer |
| Build Volume | 600 × 600 × 660 mm |
| Machine Dimensions | 906 × 1060 × 1506 mm |
| Shipping Weight | Approximately 120 kg (configuration dependent) |
| Build Platform | Flexible Magnetic PEI Build Surface |
| Heated Bed Temperature | Up to 110 °C |
| Maximum Nozzle Temperature | Up to 500 °C (with optional high-temperature configuration) |
| Layer Resolution | 50 – 800 Microns |
| Travel Speed | Up to 350 mm/s |
| Print Speed | Up to 250 mm/s |
| Extrusion System | Single Extruder Standard (Optional IDEX Dual Extrusion) |
| Print Head | Modix Griffin High-Flow Print Head with PT1000 Sensor |
| Supported Filament Diameter | 1.75 mm |
| Supported Materials | PLA, PETG, ABS, ASA, TPU, Nylon, PP, Carbon Fiber Reinforced Materials and Other Engineering Thermoplastics |
| Frame Construction | Industrial Aluminum Extrusion Frame with Powder-Coated Components |
| Motion System | Belt-Driven Cartesian Motion System |
| X-Axis Motors | Industrial NEMA 23 Stepper Motors |
| Z-Axis Configuration | Multi-Motor Z Axis with Automated Gantry Alignment |
| Linear Motion Options | Smooth Rods Standard or Optional Hiwin Linear Rails |
| Calibration Features | Automatic Bed Tilt Calibration, Bed Leveling, Gantry Alignment and Z Offset Calibration |
| Reliability Features | Clog Detection, Crash Detection and Filament Runout Detection |
| Controller | Duet 2 WiFi Controller with Duex 5 Expansion Board |
| Connectivity | WiFi, USB and SD Card |
| Firmware | Open-Source RepRap Firmware Platform |
| Slicer Compatibility | PrusaSlicer, Cura, Simplify3D and Other Standard FDM Slicers |
| Enclosure | Optional Full Enclosure for Thermal Stability and Improved Material Performance |
| Optional Add-Ons | IDEX Dual Extrusion, Hiwin Rails, Air Filtration, Griffin High-Flow Hotends, High-Temperature Upgrades, Enclosure and Large Spool Holder |
| Safety Features | Emergency Stop Button, Frontal Power Switch and Thermal Protection Features |
| Electrical Requirements | 110V / 230V AC Compatible |
| Assembly | Self-Assembly Kit with Optional Professional Assembly Services |
| Warranty | 12-Month Warranty with Lifetime Technical Support |
| Best Use Cases | Large Functional Prototypes, Manufacturing Tooling, Molds, Jigs, Fixtures, Architectural Models and End-Use Production Parts |
| Industries | Manufacturing, Automotive, Aerospace, Product Development, Education, Architecture and Industrial Design |
Specifications and available features may vary depending on selected configuration and optional upgrades.
