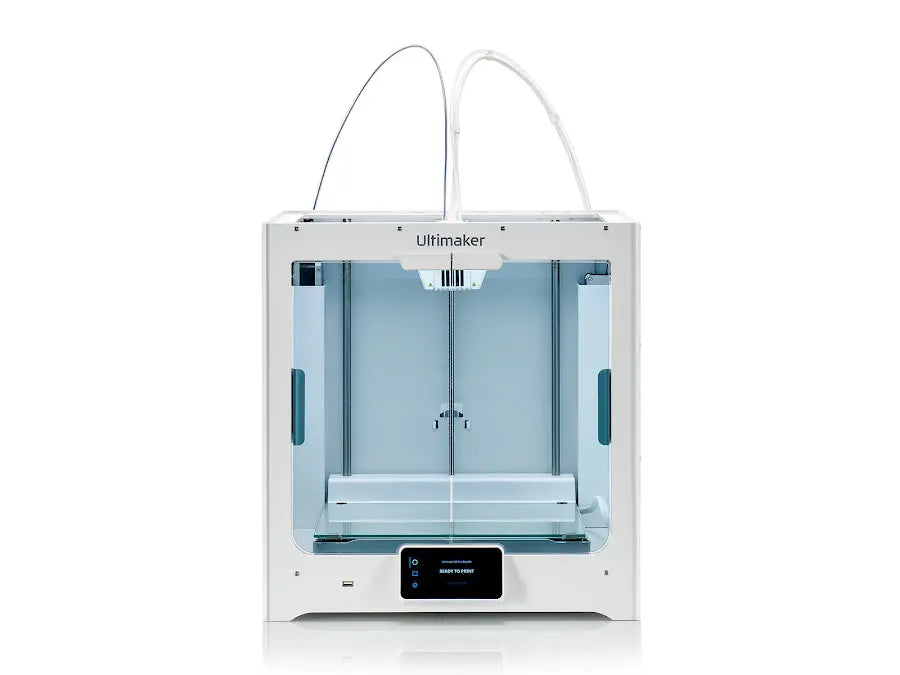

UltiMaker S5 large-format dual extrusion 3D printer

The UltiMaker S5 is a large-format 3D printer built to deliver reliable, easy-to-use printing for professional, educational, industrial, and manufacturing environments. The printer combines a larger build capacity with dual extrusion and practical workflow features for more capable day-to-day production.

Key features of the UltiMaker S5

• Large build volume for producing bigger parts and handling projects that need more print space.
• Dual extrusion capabilities for prints that require two materials or more advanced part strategies.
• Swappable print cores to support flexible printing workflows and easier adaptation to different jobs.
• Print with any material according to the provided product content, giving users broad material freedom.
• Automatic bed levelling to simplify printer setup and help maintain consistent print preparation.
• Onboard camera for built-in visual print monitoring.
• Free UltiMaker Essentials software to support the wider printing workflow.

Why the UltiMaker S5 suits professional and educational 3D printing

This 3D printer is positioned for users who need a dependable machine that is straightforward to operate without giving up advanced capability. The combination of large-format printing, dual extrusion, and swappable print cores makes the UltiMaker S5 suitable for teams that need flexibility across different print jobs.

Use cases for large-format dual extrusion 3D printing

The UltiMaker S5 fits professional prototyping, classroom use, industrial applications, and manufacturing workflows where ease of use and reliability matter. Its feature set supports users creating larger models, multi-material parts, and ongoing print projects that benefit from onboard monitoring and automated bed levelling.

ULTIMAKER S5 3D PRINTER TECHNICAL SPECIFICATIONS

What are the Dimensions for the S5?

• Build Volume:30 x 240 x 300 mm (13 x 9.5 x 11.8 inches)
• Assembled Dimensions (with spool holder installed):95 x 585 x 780 mm (19.5 x 23 x 30.7 inches)
• Compatible filament diameter: 2.85mm
• Weight: 20.6 kg (45.4 lbs)

What are the Ultimaker S5's printer properties?

• Print Technology: FFF (Fused filament fabrication)
• Maximum Power Output:00 W
• Layer Resolution:00 - 20 micron with 0.4mm nozzle (stock), 150 - 60 micron with 0.25 mm nozzle, 300 - 20 micron with 0.6 mm nozzle, and 600 - 20 micron with 0.8mm nozzle. Additional print cores are available.
• XYZ Resolution: 6.9, 6.9, 2.5 micron
• Build Speed: < 24 mm/s
• Nozzle Temperature: 180 - 280 °C
• Nozzle Heat Up Time: < 2 minutes
• Operating Sound: < 50 dBA
• Build Plate: Heated glass bed - 20 - 140 °C
• Build Plate Leveling: automatic advanced leveling
• Feeder Type: Dual-geared feeder designed for advanced composite materials
• Touchscreen Display:.7-inch (11.9 cm) color
• Print Head: Dual extrusion print head with an articulating nozzle-lifting system
• Print Core and Nozzles Replacement: Swappable Print Cores
• Nozzles Diameters: arrives with 0.4 mm, but 0.25 mm, 0.6 mm, and 0.8 mm are available here.

What is the Software for the Ultimaker S5?

• Ultimaker Cura: print preparation software (free)
• Ultimaker Essentials: printer management software (free and available to upgrade for enterprise solutions)
• Supported OS: MacOS, Windows, and Linux
• Supported File Types: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG
• Printable Formats: G, GCODE, GCODE.gz, UFP
• File Transfer: Wi-Fi, Ethernet, USB
