Filament Spectrum PA6 CF15

High temperature construction material

Spectrum PA6 CF15 is a black, high-temperature PA6-based construction material modified to achieve better performance. Filling with carbon fibres increases significantly the mechanical strength of the polyamide the material is based on. The filaments specific quality is the moisture absorption reduced by half and the water absorption time is four times lower than that of the pure PA6. Printing does not require a heated chamber and no deformation occurs. The material is compatible with the HIPS and PVOH support materials.

In addition, Spectrum PA6 CF15 features an exceptionally low linear shrinkage (up to 0.1%), a high deformation temperature (240oC) and low thermal expansion coefficient (0.4 10-5/K). Parts made of Spectrum PA6 CF15 allow for long-term operation at elevated temperatures up to 150°C (20.000h) and up to 180°C for a short time operation (max. 200h).

To attain the very attractive properties of Spectrum PA6 CF15, as regards the technical aspects, you need to follow the basic storage rules for such materials (in a dry and dark place with humidity below 15%). To obtain the best parameters of the printed object possible, it is recommended to dry the material prior to work.

Tip: Due to the essential content of chopped carbon fire, it is recommended to use nozzles with diameters exceeding the standard value of 0.4mm. The presence of carbon fibre may also cause wear of standard nozzles; thus it is recommended to use hardened steel or ruby nozzles for prolonged application of Spectrum PA6 CF15.

Key features:

• exceptionally low processing (linear) shrinkage of 0.1 %
• high temperature up to 180°C for short-time operation (max. 200h)
• high temperature up to 150°C for long-time operation (20.000h)
• heat distortion temperature – HDT A 200°C (ISO 75)
• water absorption below 0.3% (23°C / 24h)
• abrasion resistance
• high mechanical strength
• very robust interlayer lamination
• high creep resistance
• high hardness and rigidity of the printed items

Applications:

• production of gear wheels and racks, sweep-off gears and guide rolls operated in elevated temperatures up to 150°C on a prolonged basis and up to 180°C on a short-time basis
• all types of ring and plate seals with an increased chemical and corrosion resistance
• end-use parts
• tooling
• functional prototyping
• industrial modelling

Packaging

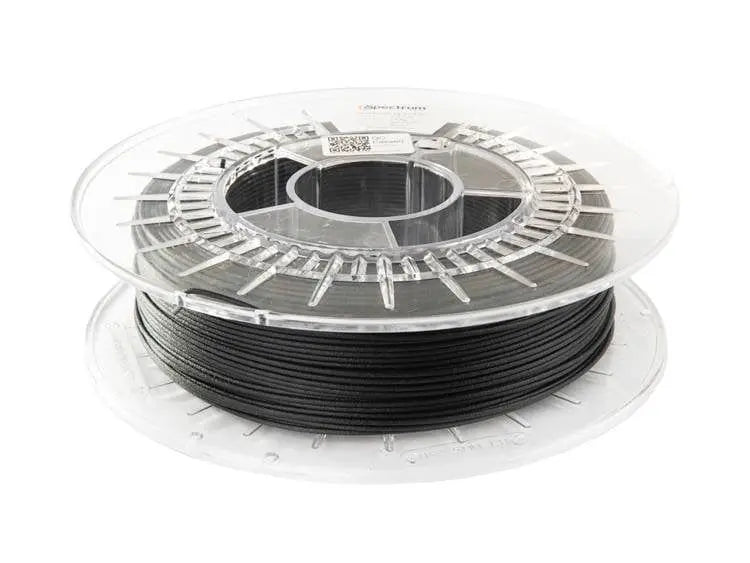

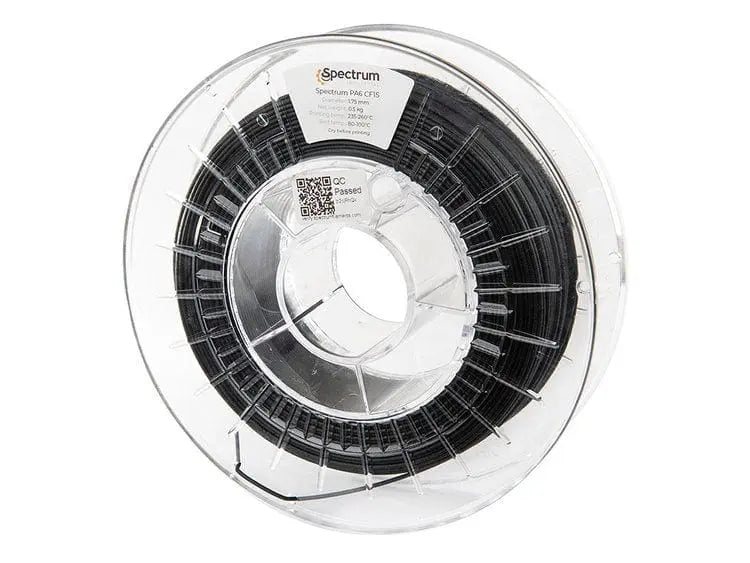

Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed with a moisture absorber. Whole product packed in the original, foiled Spectrum Filaments packaging.

VERIFY YOUR SPOOL

- the most precise quality control system on the market

Filament for 3D printers is manufactured by the method of free extrusion, which is one of the most difficult processing techniques by extrusion, due to the particularly significant impact of process parameters on product dimensions and material homogenization.

During the production each 1mm of Spectrum Filament is being continuously measured in 2 axes with ±0.8µm accuracy, which allow obtaining a high-quality final product. To prove this, Spectrum Filaments, as one of the few manufacturers in the world, has introduced the possibility of online presentation, individually for each manufactured spool:

• the course of diameter on the entire length of the spool,
• mean diameter,
• ovality,
• standard deviation.

Precise survey guarantees that Spectrum Filaments products meet rigorous market requirements.

General information
Color Black
Spectrum color name Black
Diameter 1.75mm
Dimensional tolerance ± 0.05mm
Verify your spool - preview of the diameter course on the entire length of the spool YES
Density 1.25 g/cm³
Net weight 750g
Total weight 1150g
Recommended print settings
Printing temperature 260-290°C
Heated bed necessary
Heated bed temperature <80°C
Printing speed 30-60mm/s
Closed chamber Not necessary
Dimensions of the spool
Outer diameter 200mm
Width 55mm
Inner diameter 52mm
Empty spool weight ± 220g
