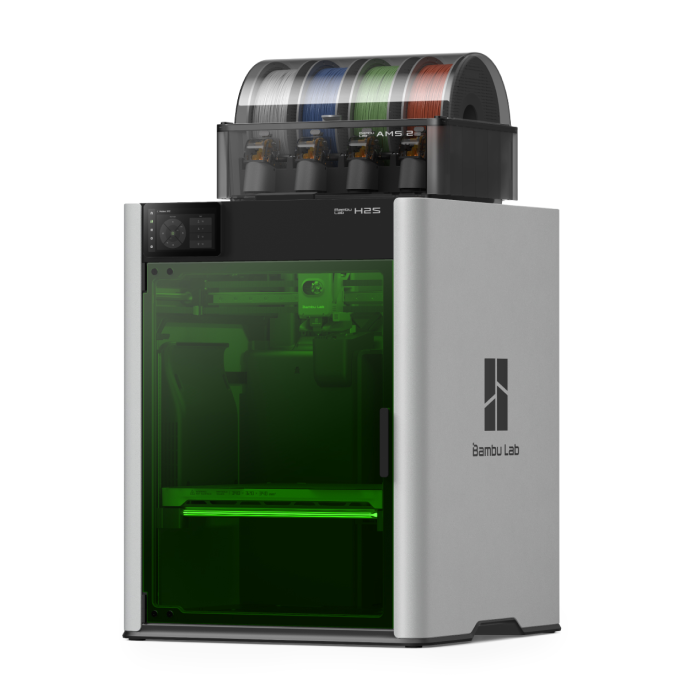

Bambu Lab H2S Laser Full Combo overview

The Bambu Lab H2S Laser Full Combo is a large-format personal manufacturing hub that combines 3D printing, laser cutting, engraving and drawing in one platform. It is built to deliver high dimensional accuracy, support engineering-grade materials and automate more of the setup, monitoring and safety work during operation.

Bambu Lab H2S highlights

The H2S is positioned as a go-to personal manufacturing hub for users who need one machine for prototyping, functional parts and digital fabrication workflows. The platform combines high-speed motion, a large enclosed build area, multi-sensor monitoring and integrated laser-ready features.

High-accuracy 3D printing for functional parts

Mechanical deviation correction with Vision Encoder

The H2S is designed to maintain precision over time by correcting mechanical drift during calibration. Even when a printer leaves the factory with strong baseline accuracy, wear and mechanical variation can develop, and the Vision Encoder is presented as a first-in-industry solution for compensating that drift automatically.

With the Vision Encoder, the H2S achieves distance-independent motion accuracy under 50 μm, which is thinner than a human hair. The result is more consistent print precision and sustained performance across the machine’s working life.

Hole and contour compensation for fit-critical assemblies

Auto Hole/Contour Compensation is designed to minimise printing tolerances and improve hole dimensions to a machine-shop-level standard. The feature supports design work where part fit matters, including shafts, bearings and fasteners that need to assemble without repeated test prints.

That makes the H2S better suited to functional prototypes and production-style parts where post-print assembly accuracy is important.

Thermal control for engineering filaments

A 350 °C hotend and 65 °C actively heated chamber allow the H2S to process the full Bambu filament lineup, from PLA and PETG through to PC and PPA. Closed-loop fan control and precise thermal management are used to reduce warping, limit deformation and improve layer adhesion.

The enclosed thermal environment is intended for large, high-performance parts that need both dimensional stability and structural strength.

350 °C Hotend 65 °C Heated Chamber

Surface finish and edge definition

The H2S controls extrusion using both servo motor sensing at the extruder and high-resolution eddy current sensors at the nozzle. By measuring nozzle pressure and calibrating pressure advance parameters for each filament, the printer improves surface smoothness and edge sharpness.

That sensing approach helps the system produce cleaner visible surfaces while preserving detail on corners and edges.

Motion control at higher print speeds

Active Vibration Compensation reduces micro-vibrations and resonance in real time. The benefit is improved print quality while maintaining faster movement, which is especially relevant on a large-format machine.

Functional design use cases

The H2S is positioned for real-world functional parts rather than display-only prints. Examples shown include a seed starter in PA6-GF, a go-kart frame in PAHT-CF and an RC plane in PLA Tough+.

These examples illustrate how the machine’s temperature control, material support and dimensional accuracy can be applied to structural and use-ready designs.

Seed Starter: PA6-GF Go-Kart Frame: PAHT-CF RC Plane: PLA Tough+

AI monitoring and closed-loop control

20,000 checks per second

The H2S uses Bambu Lab’s proprietary PMSM servo system with 20 kHz resistance and position sampling. The system dynamically modulates electromagnetic torque vectors to stabilise extrusion and detect grinding or clogs in real time.

This closed-loop feedback approach supports more consistent material flow and earlier fault detection during printing.

23 sensors and 3 cameras for multi-point monitoring

The machine uses 23 sensors and 3 cameras so different risks and operating states can be monitored by dedicated detectors. The AI-driven vision system identifies clumping, spaghetti failure and purge chute jamming as they occur, helping prevent failed prints before they progress.

The same vision system also supports Live Spatial Alignment for precise laser and cutting calibration, and Vision Encoder functionality for improved positional accuracy.

Each Potential Risk Has Its Own Detector

Feeding intelligence

Filament-path sensors work together to monitor feed speed and position, detect tangles and grinding risks, track filament mileage and spool usage, and confirm tool readiness across the AMS, buffer, cutter and feeding paths. The goal is to keep every tool in place and every movement controlled during operation.

Thermal monitoring

Five NTC temperature sensors are placed across the nozzle, heatbed and chamber, and are paired with integrated airflow sensors. Real-time feedback is used to monitor temperatures and air circulation continuously so the internal environment stays within the intended range.

Integrated safety monitoring

The safety system includes five flame sensors, front-door and top-cover sensors, and an emergency stop button. These components detect fire risks, monitor enclosure alignment and provide instant shutdown capability when needed.

AI pre-flight checklist

Before each operating cycle, the H2S runs a vision-based pre-flight checklist. The sequence includes a chamber integrity scan to detect debris across the print surface and a hardware configuration audit to identify build plate properties instantly.

Airflow and filtration modes for printing and laser work

Flap Switch airflow and filtration system

The H2S uses a flap-switch airflow and filtration system that adapts to 3D printing and laser cutting workflows with three operating modes.

3D Printing & Laser Cutting. 3 Modes, All-in-One

High-temperature printing mode

For engineering materials, the chamber remains sealed and internal air recirculates through the air filter and heater to stabilise high-temperature conditions. This mode is intended to support large engineering parts with reduced warping risk.

Low-temperature printing mode

For materials such as PLA and PETG, the top vent opens to admit cool air while maintaining a filtered exhaust. This allows low-temperature printing without opening the door and helps with overhangs and bridging.

Laser cutting and engraving mode

During laser work, the top vent and filter switch flap open so fumes can be directed efficiently to the ventilation system. That workflow is intended to keep the workspace cleaner and safer during cutting and engraving tasks.

Large-format productivity and speed

Maximum volume for single-piece builds

With a 340 × 320 × 340 mm³ build volume, the H2S offers the largest print space among Bambu Lab printers. The larger format supports bigger parts in one print instead of splitting models into multiple sections.

High-speed printing with reinforced extrusion performance

Bambu Lab’s proprietary PMSM servo extrusion system delivers 67% more extrusion force, providing stronger support for high-flow printing. Combined with up to 1000 mm/s toolhead speed and up to 20,000 mm/s² acceleration, the H2S is designed for fast output while maintaining print quality.

The description states that this performance can cut printing time by up to 30% while preserving top-tier results.

Laser cutting, engraving and drawing in one machine

The H2S Laser Full Combo extends beyond 3D printing by adding compact all-in-one capability for cutting, engraving and drawing. That combination supports workflows where a single machine is used to print parts, engrave surfaces or prepare cut components without moving to separate equipment.

Built-in safety and protected operation

Laser safety window and fire protection

The enclosure includes a laser safety window that shields the user’s eyes from the 455 nm laser beam while keeping the workspace visible. Five flame sensors continuously monitor for fire risks, and if an issue is detected the system can trigger a loud buzzer and a mobile alert.

A flame-retardant chamber adds passive protection through fire-resistant materials, while the emergency stop provides immediate manual shutdown whenever something feels off.

Connectivity, remote control and offline operation

Cloud-enabled when convenient, offline when required

The H2S supports cloud connectivity for remote control from connected devices, making it suitable for users who want flexible access. For security-sensitive environments, the printer also supports complete offline functionality with physically isolated operation.

Users can control the machine, send files and upgrade firmware without an internet connection. Developer Mode also unlocks MQTT port access for third-party components and custom software integration.

Serviceability, comfort and long-term usability

Accessibility and maintenance are part of the H2S design, with features aimed at easier day-to-day operation and reduced setup friction.

Quick-swap nozzle

The redesigned hotend allows nozzles to be changed in seconds without tools. That simplifies material changes and nozzle-size upgrades, including for first-time users.

Low-noise operation

Active Motor Noise Canceling and specialised air-duct noise-reduction technology keep operating noise below 50 dB. The machine is therefore better suited to overnight use or shared workspaces where lower noise matters.

Rigid die-cast chassis

An integrated all-metal die-cast aluminum alloy body gives the H2S a stable structural foundation for high-speed, large-format printing. The rigid frame helps reduce accuracy loss caused by micro-twisting.

Electro-magnetic air vent

Automated venting supports dehumidification during drying and airtight sealing for weeks of quality printing. This feature is aimed at preserving filament condition within the workflow.

Auto-rotate drying

During drying, filament spools rotate automatically to promote more even drying across the spool.

RFID sync with AMS 2 Pro

AMS 2 Pro uses RFID to match drying settings automatically for Bambu official filaments, removing the need for manual input.

Who the Bambu Lab H2S Laser Full Combo is for

The H2S fits makers, engineers, product designers, educators and small production users who need accurate large-format 3D printing plus integrated laser fabrication. It is especially relevant for users producing fit-critical parts, engineering-material prints, workshop prototypes, jigs, fixtures, enclosures, fabricated panels and mixed-process project builds.
