Resistance to outdoor conditions with a beautiful carbon finish

Analysing the feedback from the users of our filament, we have decided to expand the range of materials for outdoor use in conditions of increased exposure to UV radiation, temperature and humidity. ASA, a well-known polymer that is a highly weather-resistant alternative to ABS, has become the base for another composite material, Spectrum ASA-X CF10™.

Our paramount objective was to develop a material that would guarantee the printed models consistently high mechanical performance, especially in terms of hardness and stiffness, even under prolonged use in outdoor weather conditions. The result is the creation of Spectrum ASA-X CF10™, a composite based on an appropriately selected ASA with carbon fibre filling.

We provide our users with filament that is resistant to external exposure, such as sunlight (UV) and humidity (hydrolysis), with a tensile strength of over 7.5 GPa and a thermal resistance of 101°C. At the same time, Spectrum ASA-X CF10™ has low shrinkage and is, unusually for technical materials with comparable properties, easy to print. All of this, combined with a carbon matt surface that effectively masks the layers of the printed models, has made the Spectrum ASA-X CF10™ a very popular choice among the 3D printing community.

Material characteristics

  • 10% carbon fibers
  • HDT thermal resistance – 95°C
  • Vicat softening point – 101°C
  • excellent resistance to outdoor exposure
  • UV resistance
  • Printable on desktop printers without a heated chamber
  • carbon, matt printed surface
  • perfect bonding of the layers
  • easy to print

Applications

  • functional prototypes
  • manufacturing equipment
  • manufacture of housings and covers
  • manufacture of parts subject to abrasive wear
  • manufacturing tools
  • components that need high resistance to outdoor exposure

General Information

Color Black CF10
Spectrum colour name Black CF10
Diameter 1.75mm
Dimensional Tolerance ± 0.05mm
Verify your spool - preview of the diameter course on the entire length of the spool Yes
Density 1.10 g/cm3
Net Weight 1000g
Total Weight 1400g

Recommended Print Settings

Printing temperature 235-260°C
Heated bed necessary
Heated bed temperature 90-110°C
Printing speed 30-70 mm/s
Closed chamber Not necessary

Dimensions of the Spool

Outer diameter 200mm
 Width 70mm
 Inner diameter 52mm
Empty spool weight ± 250g

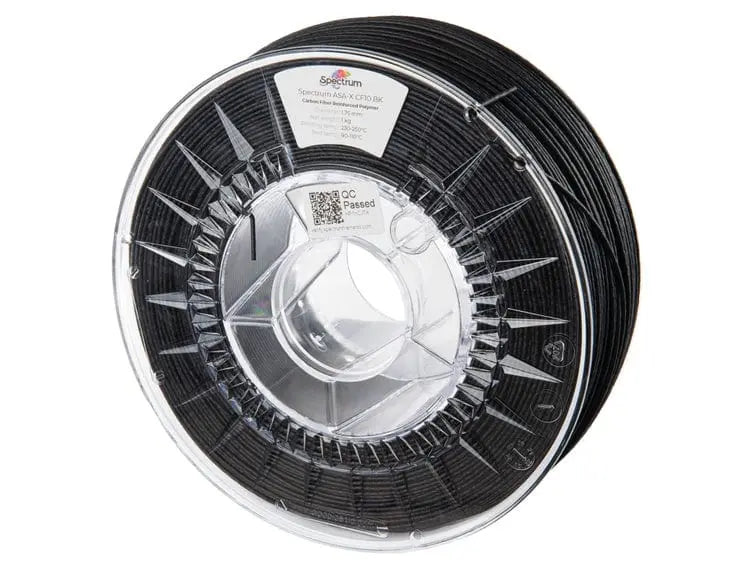

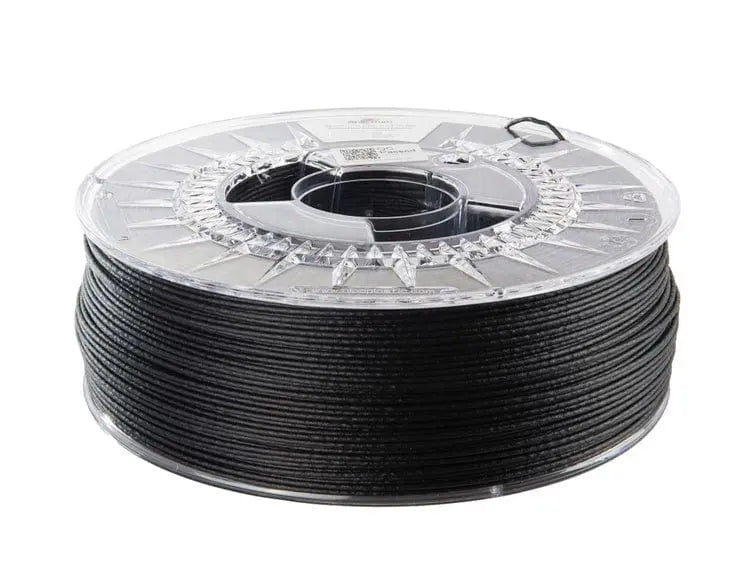

Black CF10 - Spectrum ASA-X Filament - 1.75mm, 1kg
