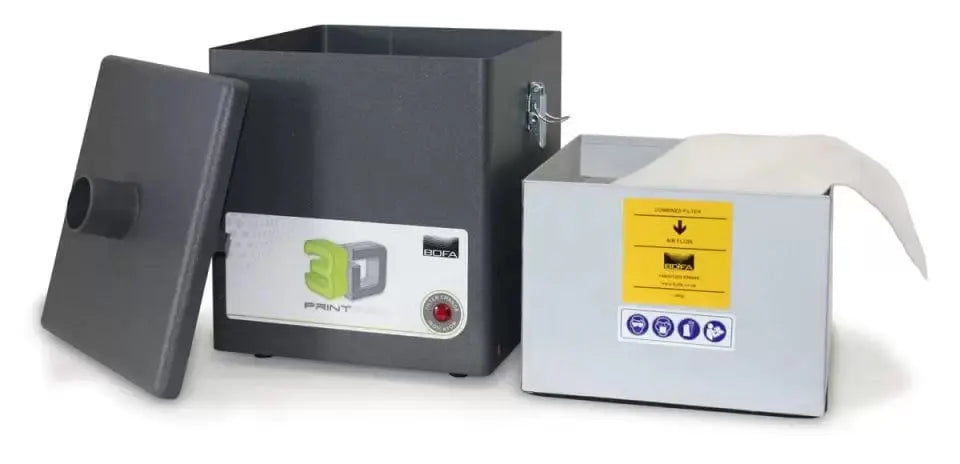

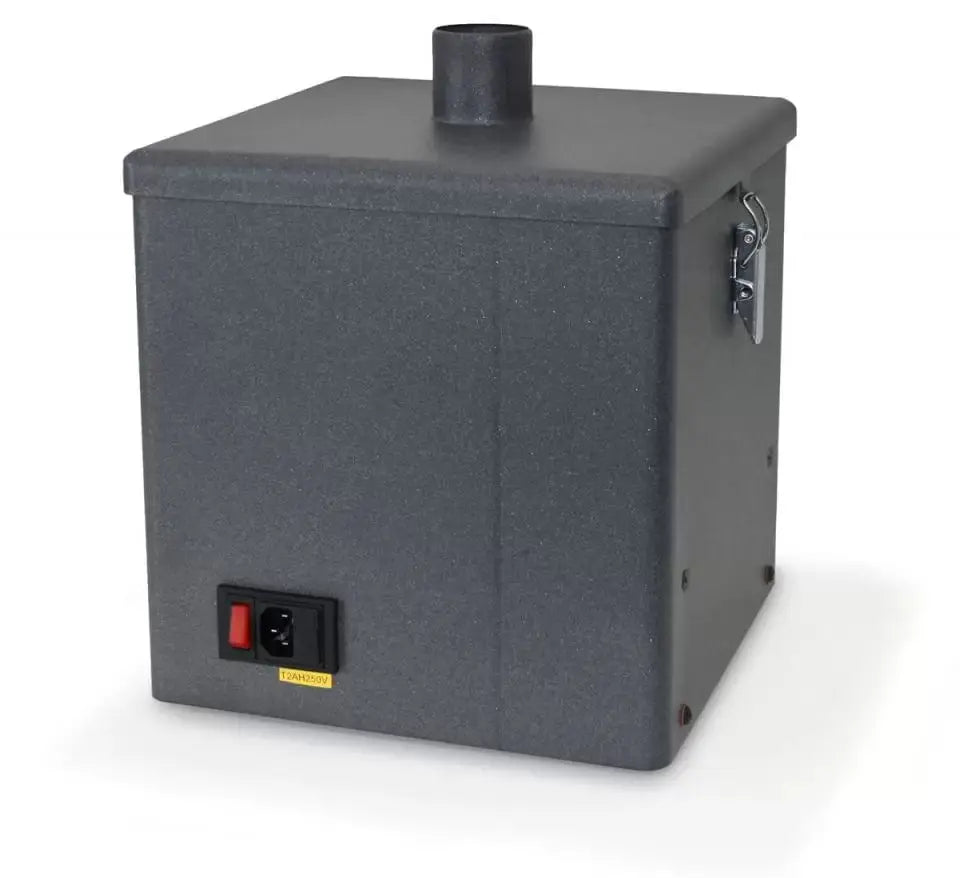

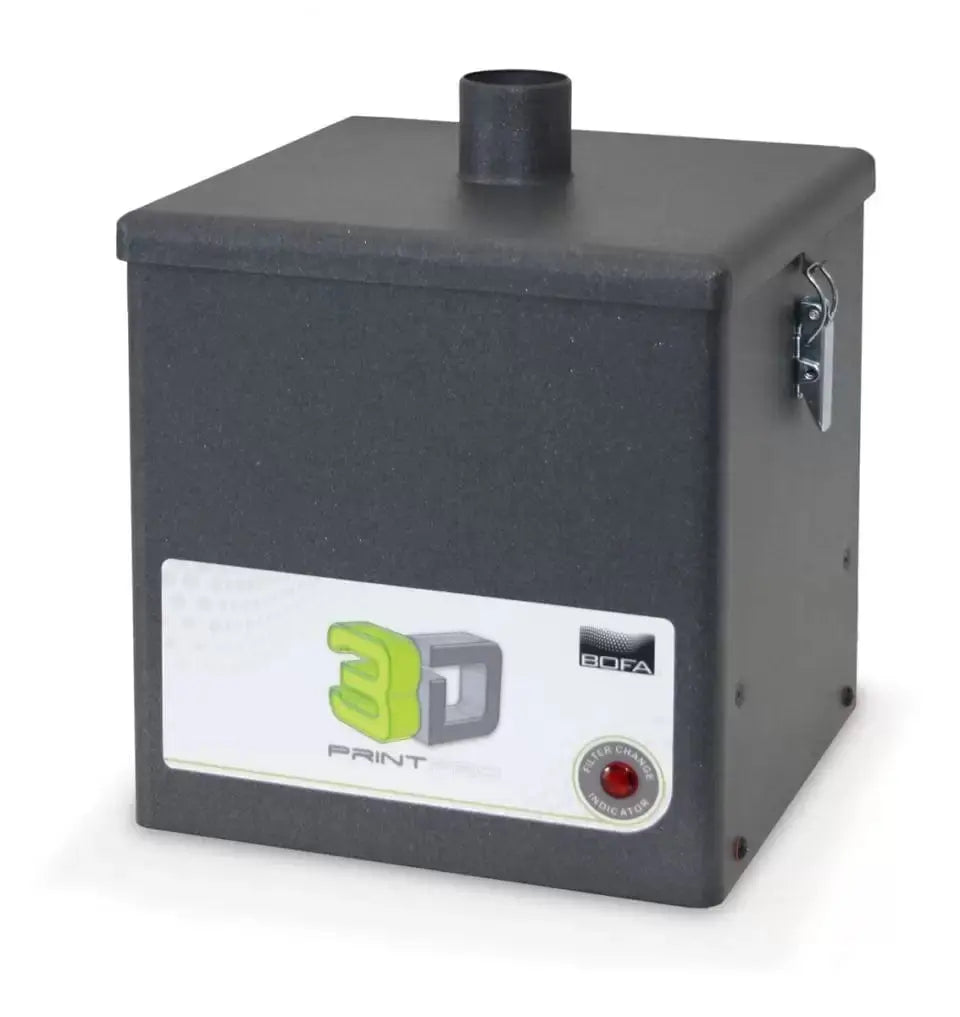

3D PrintPRO 2

For open-framed 3D printers.

The BOFA 3D PrintPRO 2 is a low-cost unit, which extracts fumes generated by an open-framed 3D printer without causing the filament deposition area to be cooled.

It has the benefits of low noise level and minimal power consumption. Each unit is supplied with a connection hose, ‘stay put’ arm and conical shaped funnel.

Key features of the 3D PrintPRO 2



HEPA filter

BOFA uses mini pleat design HEPA (high efficiency particulate air) filters which are tested and certified to a minimum efficiency of 99.997% down to 0.3 microns and 95% as small as 0.1 micron. They incorporate a series of webbing between the pleated media. This feature not only guarantees even spacing for full filter coverage between each pleat, but also alleviates the possibility of airflow vibration or collapse.

Advanced carbon filter (ACF) technology

ACF assures safe capture and removal of hazardous fumes.
Contaminated air must remain in contact with the carbon bed for a period of time sufficient to ensure that no contaminants or odours are emitted (‘dwell time’). Our filters have been developed to capture all contaminants and odours, eliminating the risk of bypass and/or tunnelling.

Multi voltage sensing unit (MVS)

Automatically senses the local voltage and adjusts accordingly, between 90-275V.

ProTECT service plan

Our PROtect LEV service plan and compliance certification has been designed to give you the peace of mind that your LEV (Local Exhaust Ventilation) systems are being expertly maintained throughout their working life and you are kept within government guidelines and regulations in the UK.

SureCHECK quality standard

We recognised that quality, health and safety and environmental management are integral to our management. SureCHECK is far more than just written words, it touches every employee and is engrained within the company’s culture and business ethos. It is applied consistently across all our business activities on a world-wide basis.

Technical specification

  • Filter change indicator: Standard
  • Hose kit included: Standard
  • Powder coated for durability: Standard
  • Compact size: Standard
  • 3 level filtration - pre, HEPA and chemical filters: Standard
  • Low noise level: Standard
  • Small footprint: Standard
  • 24V remote stop/ start interface: Optional

View suitable applications

  • Polymer powder bed fusion
  • VAT polymerisation
  • Metal powder bed fusion / directed energy deposition
  • Fused Filament Fabrication (FFF)
  • Binder jetting
  • Material jetting
