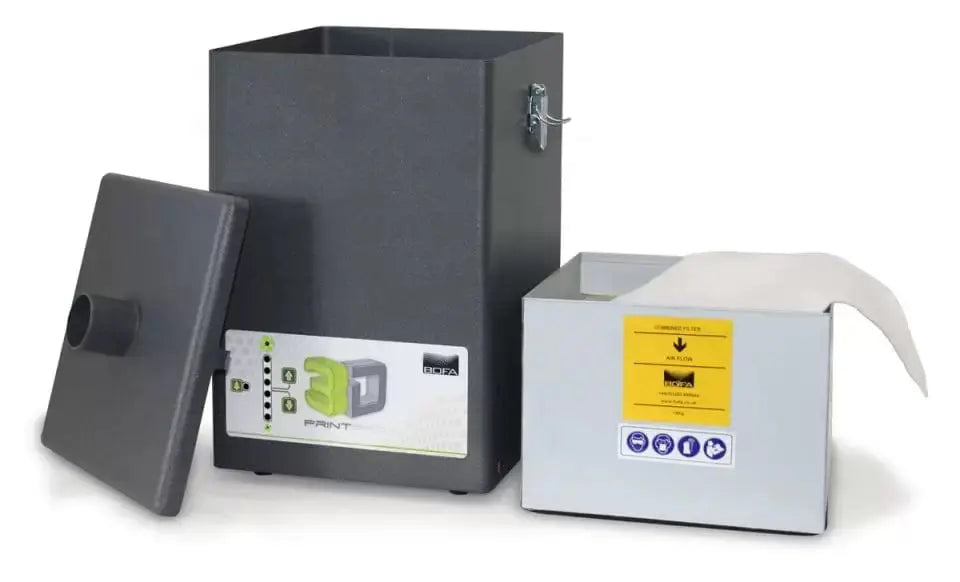

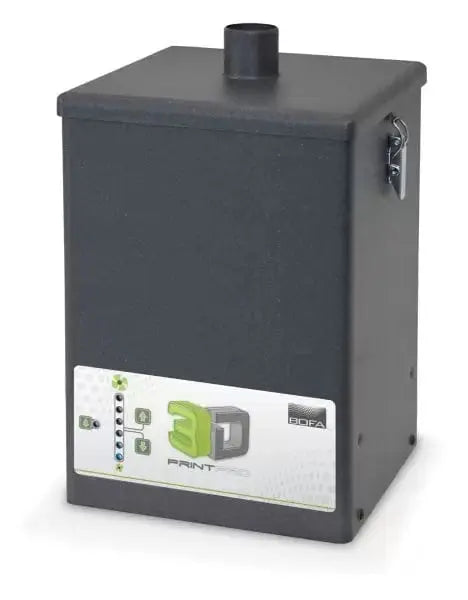

BOFA 3D PrintPRO 3 - Fume Extractor Out of stock

Brand: BOFA
$1,599.00 CAD was

Tags
CSA

3D PrintPRO 3

For tabletop enclosed/partially enclosed 3D printer.

The BOFA 3D PrintPRO 3 incorporates externally mounted plenum system manifolds, which effectively captures fumes generated during the printing process and returns ultra-clean, filtered air to the operator’s breathing zone.

The BOFA 3D PrintPRO 3 has the benefits of low cost, low power consumption and integral speed control. Each filtration unit is supplied with connection hoses and ‘print your own’ manifold instructions.

Key features of the 3D PrintPRO 2



HEPA filter

BOFA uses mini pleat design HEPA (high efficiency particulate air) filters which are tested and certified to a minimum efficiency of 99.997% down to 0.3 microns and 95% as small as 0.1 micron. They incorporate a series of webbing between the pleated media. This feature not only guarantees even spacing for full filter coverage between each pleat, but also alleviates the possibility of airflow vibration or collapse.

Advanced carbon filter (ACF) technology

ACF assures safe capture and removal of hazardous fumes.
Contaminated air must remain in contact with the carbon bed for a period of time sufficient to ensure that no contaminants or odours are emitted (‘dwell time’). Our filters have been developed to capture all contaminants and odours, eliminating the risk of bypass and/or tunnelling.

Multi voltage sensing unit (MVS)

Automatically senses the local voltage and adjusts accordingly, between 90-275V.

ProTECT service plan

Our PROtect LEV service plan and compliance certification has been designed to give you the peace of mind that your LEV (Local Exhaust Ventilation) systems are being expertly maintained throughout their working life and you are kept within government guidelines and regulations in the UK.

SureCHECK quality standard

We recognised that quality, health and safety and environmental management are integral to our management. SureCHECK is far more than just written words, it touches every employee and is engrained within the company’s culture and business ethos. It is applied consistently across all our business activities on a world-wide basis.

Technical specification

  • Filter change indicator: Standard
  • Hose kit included: Standard
  • Powder coated for durability: Standard
  • Compact size: Standard
  • 3 level filtration - pre, HEPA and chemical filters: Standard
  • Low noise level: Standard
  • Small footprint: Standard
  • 24V remote stop/ start interface: Optional
  • Digital speed control: Standard
  • CE approvals: Standard

View suitable applications

  • Polymer powder bed fusion
  • VAT polymerisation
  • Metal powder bed fusion / directed energy deposition
  • Fused Filament Fabrication (FFF)
  • Binder jetting
  • Material jetting
