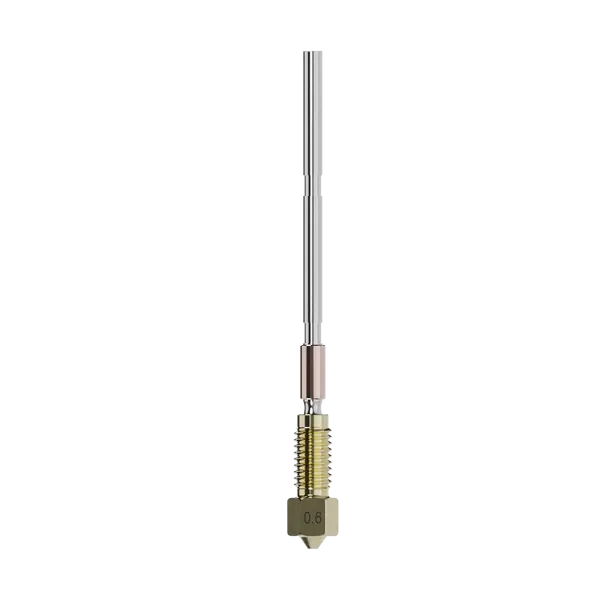

What E3D Brass High Flow Prusa Nextruder Nozzles do

E3D Brass High Flow Prusa Nextruder Nozzles are brass upgrade nozzles for Prusa’s Nextruder platform, built to raise volumetric flow rate so a Prusa MK4 or XL can print faster without sacrificing print quality. The design is made specifically for the latest Prusa extruder system and combines higher flow performance with straightforward nozzle changes.

Key features of these high flow nozzles for Prusa MK4 and XL

• Designed for the Prusa Nextruder: These nozzles are made specifically for Prusa’s latest extruder system rather than adapted from a general-purpose format.
• Higher volumetric flow rate: The high flow design is engineered to increase material throughput, helping users shorten print times and improve production speed.
• All-metal filament path: The all-metal path supports improved reliability and thermal performance during printing.
• Custom internal geometry: Instead of using older high-flow approaches such as Volcano or SuperVolcano geometry, the nozzle uses a custom internal structure that increases surface area for better heat transfer and more consistent extrusion.
• Standard E3D Prusa form factor: The nozzle keeps the standard Prusa-compatible shape, so users do not need to modify mounts or fan ducts to use the high flow design.
• Easy nozzle swaps: These drop-in replacement nozzles are built to make changing sizes faster and simpler.
• Laser-engraved size marking: Each nozzle is clearly marked with its diameter for quick identification when switching between nozzle sizes.

Where these brass high flow Nextruder nozzles fit best

These nozzles are well suited to makers, educators, small businesses, and print operators who want to print faster on a Prusa MK4 or XL without moving to a more complex hardware setup. The higher flow capacity is useful when increasing throughput for larger jobs, routine production work, or time-sensitive prototyping.

The drop-in format also makes the nozzles practical for users who regularly test different diameters such as 0.4 mm, 0.6 mm, and 0.8 mm. Faster swaps, clear size marking, and compatibility with the standard Prusa Nextruder setup make the range easier to use in day-to-day printing.

For users searching for a high flow nozzle for Prusa MK4 without fan duct modification, or an easier way to increase extrusion throughput on a Prusa XL, this nozzle range addresses both requirements within the existing Nextruder form factor.
