Key Features

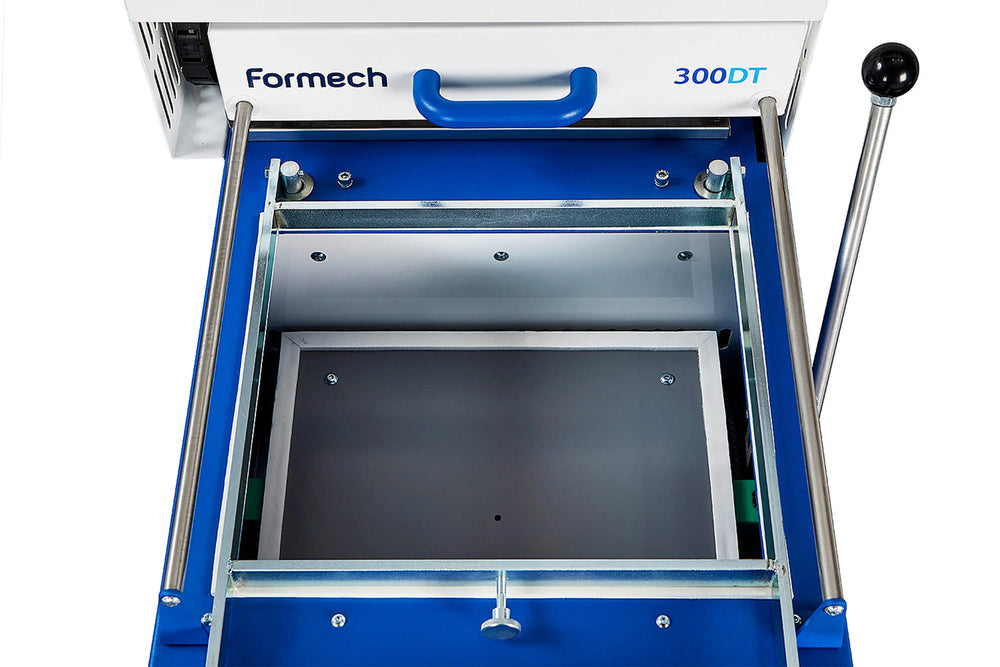

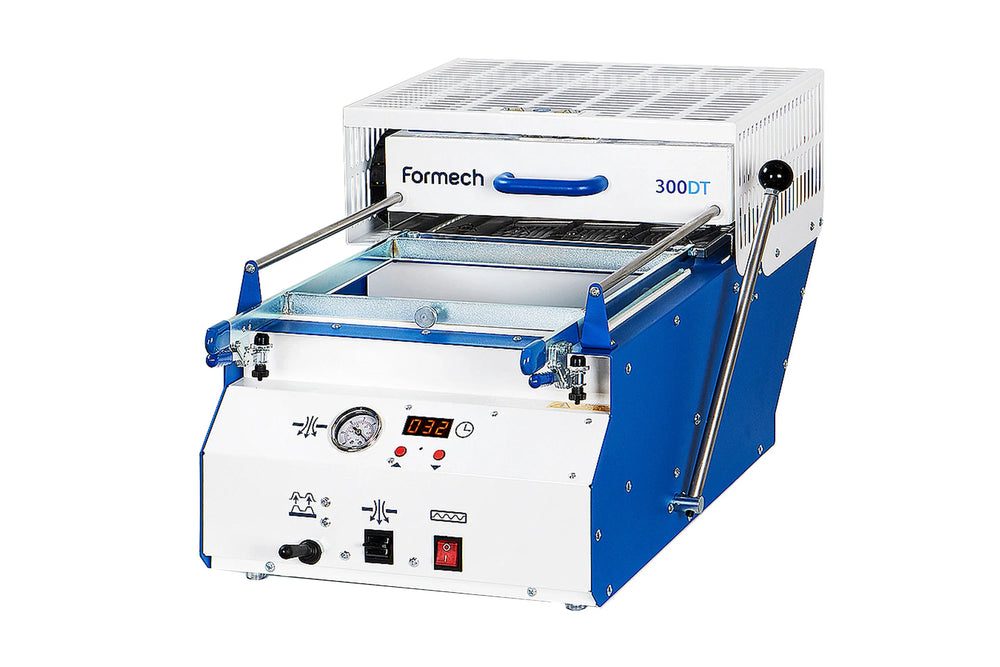

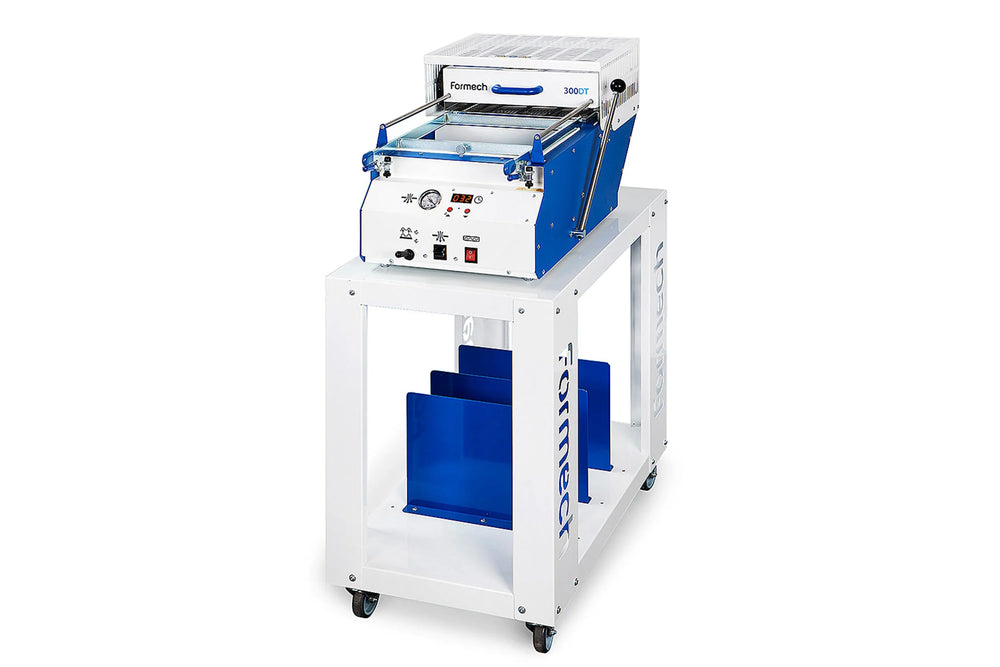

The brand new 300DT is Formech's smallest desktop machine to date. Keeping the functionality of its predecessor, the Compac Mini, the 300DT is smaller in volume and lighter than ever. Compared with other compact machines on the market, the 300DT comes with a quiet built in vacuum pump and moulding release. Easy to transport, move, and use, the 300DT is the perfect solution for creative hobbyists, artisans, and students.
Click to visit: Formech's 300DT How-To Video Library.
Click to download spec sheet.
Formech 300DT Features
Safety interlock
Mechanical interlock prevents table being raised whilst heaters are in forward position (all desktop machines).

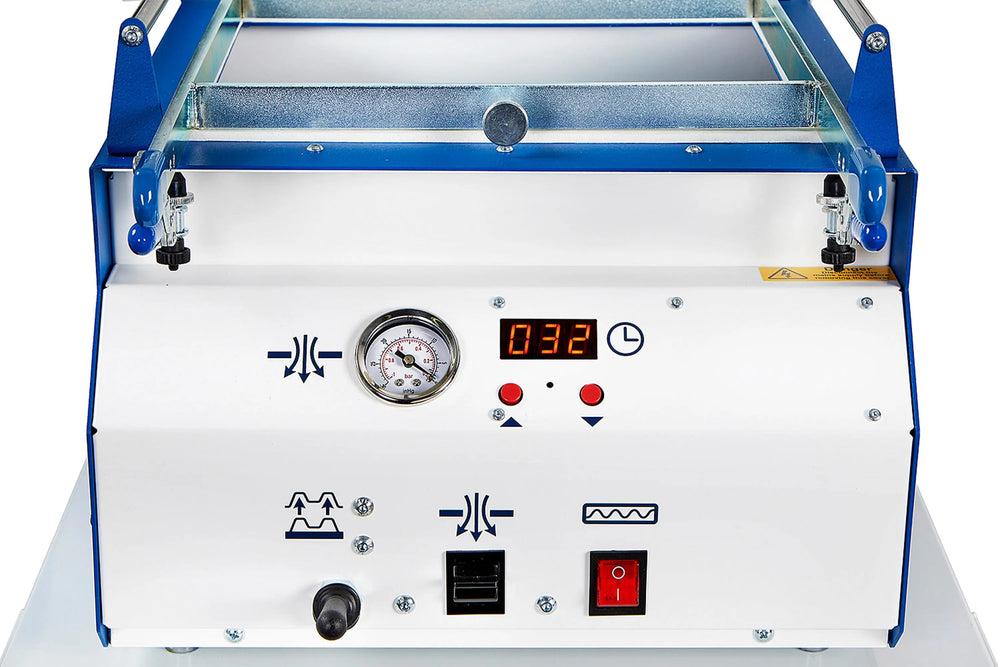

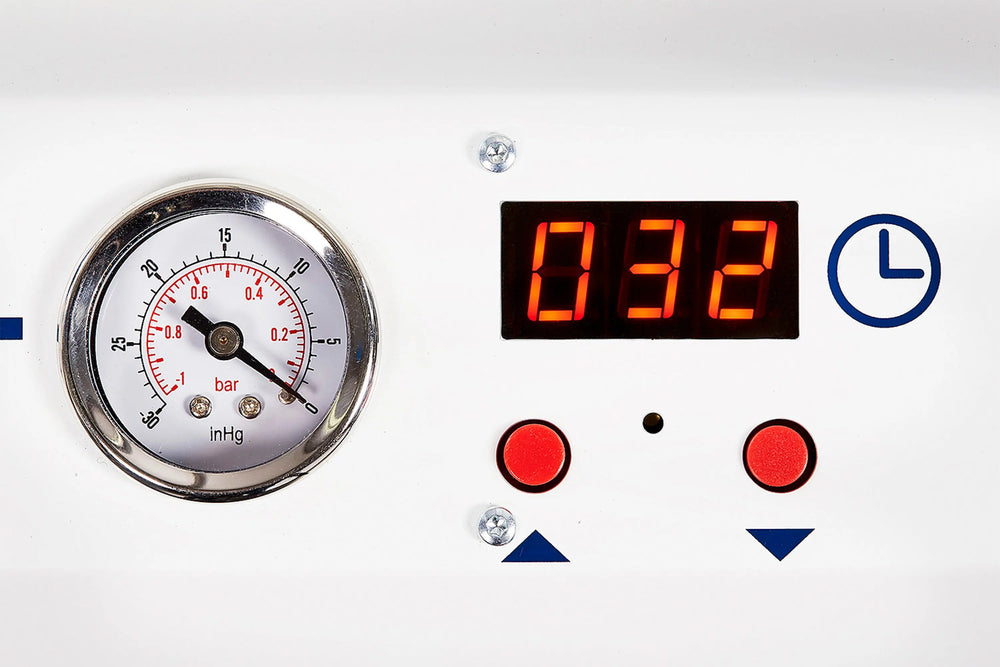

Vacuum gauge
A visual indication of consistent vacuum pressure being applied (pressure in Hg / bar).
Quartz heaters with variable standby
Quartz heaters have the benefit of a rapid response and high efficiency resulting in time and energy savings.
Vacuum & release
After the formed part has cooled, air is forced between the mould and the sheet to help it release.
Digital timer
Digital timer with programmable countdown and audible alarm helps achieve consistent cycle times.
Specifications
Forming capacity
| Forming area | 280 x 230 mm |
| Sheet size | 300 x 250 mm |
| Max depth of draw | 136 mm |
| Max material thickness | 4 mm |
Dimensions
| Machine width | 454 mm |
| Machine height | 355 mm |
| Machine depth | 742 mm |
| Machine weight | 29 kg |
Power
| Single phase power requirements | 110-120V / 13A |
| Power consumption (kW) | 1.2 |
Air
| Air requirements (PSI/bar) | N/A |
| Operating interface | Analog |
| Vacuum pump type | Diaphgram |
| Pump flow (SCFM @ 0 in. / 60Hz) | 1.7 |
| Pump flow m3 /h @ 0mbar / 50Hz | 2.4 |
| Mould release method | Pump exhaust |
Heating
| Heater type | Quartz |
| Heating zones | 1 |
