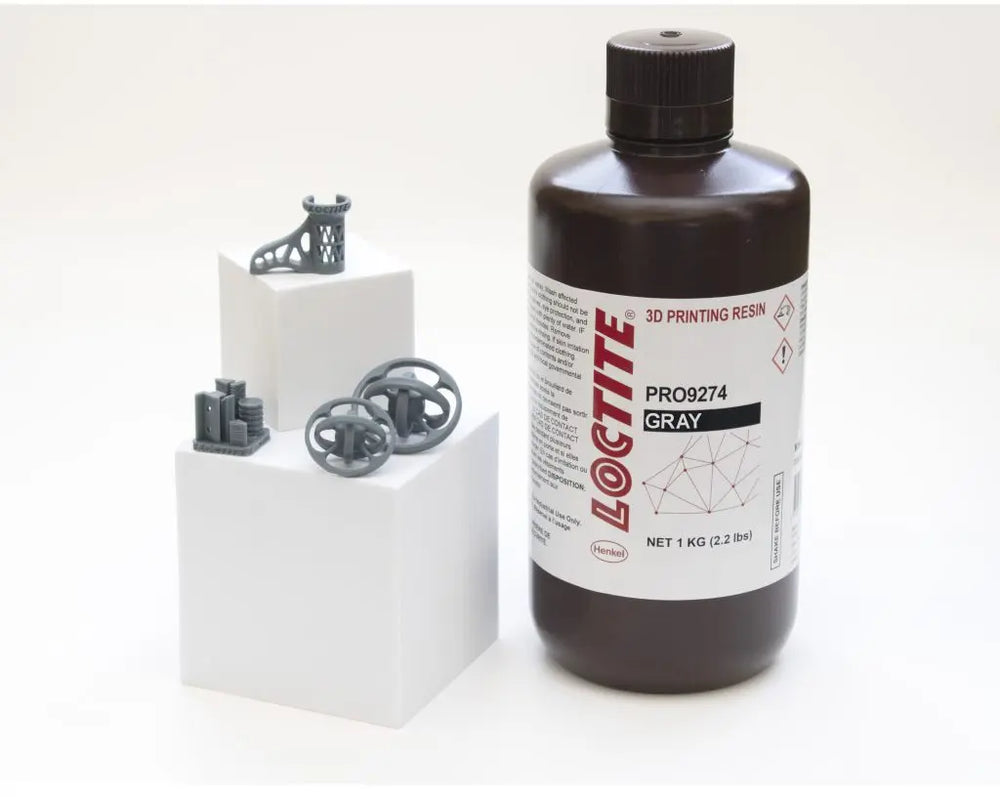

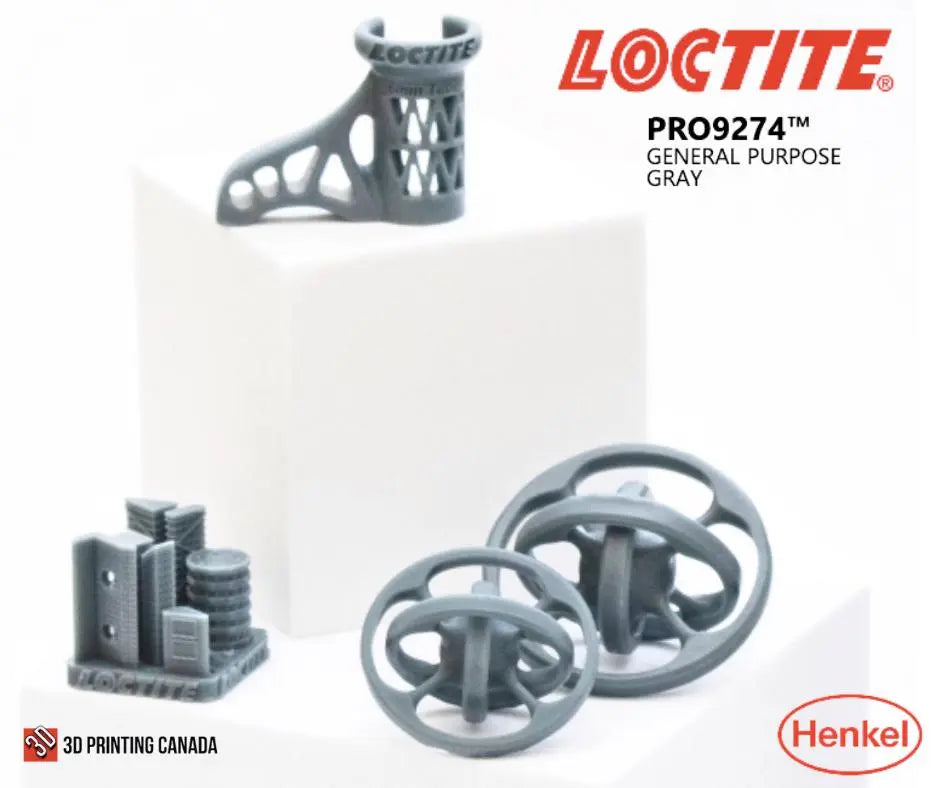

Henkel LOCTITE 3D PRO9274 Gray
The LOCTITE 3D PRO9274 is a multipurpose resin, ideal as a starting point for creating fast prototypes and models. With a high degree of printing detail, LOCTITE 3D PRO9274 allows users the versatility to transform their 2D design into 3D physical parts. It is a great choice for architects, crafters, designers and engineers alike.
LOCTITE 3D PRO9274's mechanical properties offer both durability and toughness, allowing parts to be adjusted or flexed without breaking. The resin is designed for easy printing on the widest range of LCD and DLP printers.
As part of the Loctite3D PRO Series of products, LOCTITE 3D PRO9274 offers a cost-effective and consistent solution for general-purpose part printing.
Ideal For:
- High Volume Printing: Due to its ease of printability and high resolution, it's perfect for creating accurate prototypes quickly.
- Various Industries: Suitable for use in industrial, tooling, and consumer goods sectors, among others.
Color:
Available in Gray.
LOCTITE 3D PRO9274 is an ideal solution for professionals and hobbyists alike seeking a durable, accurate, and high-quality 3D printing material, particularly in prototyping and high-usage environments.
Properties
| Mechanical Properties | Measure | Method | Green | Post Processed |
| Young's Modulus | MPa | ASTM D638 | 400-700[1] | 1400-1700[1] |
| Tensile Stress at Yield | MPa | ASTM D638 | 12-18[1] | 32-38[1] |
| Elongation at Yield | % | ASTM D638 | 4-8[1] | 3-4[1] |
| Tensile Stress at Break | MPa | ASTM D638 | 15-23[1] | 31-36[1] |
| Elongation at Break | % | ASTM D638 | 16-22[1] | 7-11[1] |
| Flexural Modulus | MPa | ASTM D790 | 400-800[1] | 2100-2300[2] |
| Flexural Stress at Break | MPa | ASTM D790 | 16-34[1] | 78-83[2] |
| Flexural Elongation at Break | % | ASTM D790 | >5[2] | 4.5-5[2] |
| IZOD impact (Notched) | J/m | ASTM D256 | - | 25-28[3] |
| Shore Hardness | D | ASTM D2240 | - | 79-82[4] |
Other Properties
| HDT at 0.455 MPa | ℃ | ASTM D648 | - | 51-53[5] |
| HDT at 1.82 MPa |
℃ |
ASTM D648 | - | 42-45[5] |
| Water Absorption (24hr) |
% |
ASTM D570 | - | 0.22[6] |
| Water Absorption (48hr) |
% |
ASTM D570 |
- | 0.28[6] |
| Water Absorption (72hr) | % |
ASTM D570 |
- | 0.37[6] |
| Solid Density | g/cm ³ | ASTM D175 | 1.15[7] | 1.16[7] |
Liquid Properties
| Viscosity at 25 ℃ (77℉) | cP | ASTM D7867 | 300-400[8] | |
| Liquid Density | g/cm ³ | ASTM D1475 | 1.08[7] |
