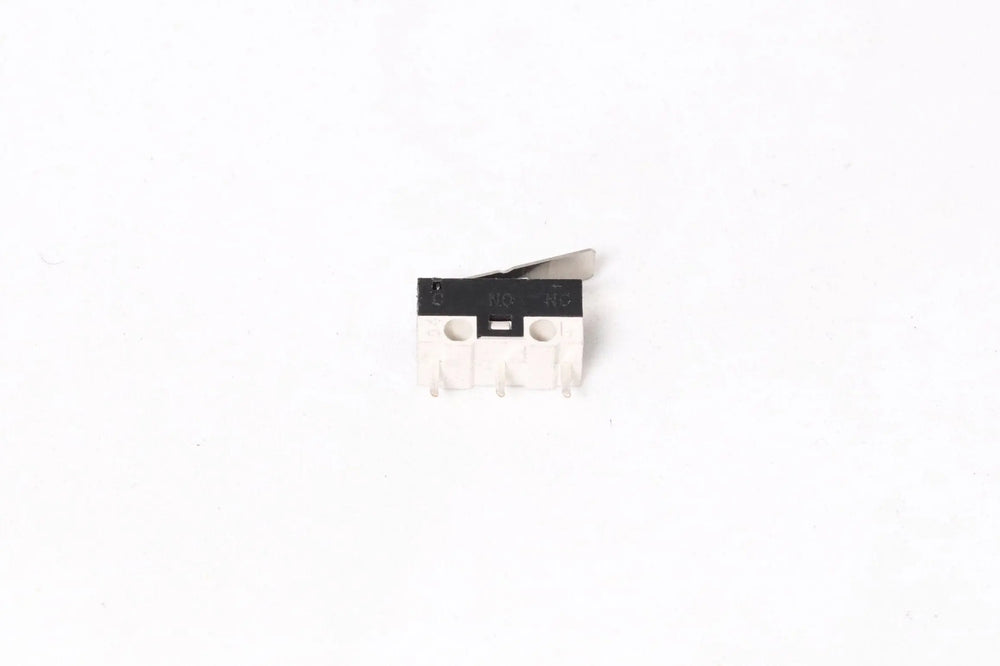

What the Micro Limit Switch Does

The Micro Limit Switch is a replacement mechanical endstop used to detect axis position in 3D printers and other small motion systems. It provides a physical trigger point for homing and travel limit detection, helping the machine establish a known reference position.

Mechanical limit switches are commonly installed on X, Y, or Z axes where reliable contact-based triggering is required. In a 3D printer, a functioning endstop is essential for accurate homing and repeatable motion setup.

Key Features and Benefits of a Mechanical Endstop Switch

• Axis homing support: A micro switch gives the controller a clear trigger signal when an axis reaches its home position.
• Physical position detection: Contact-based actuation makes this style of switch suitable for machines designed around mechanical endstops.
• Common replacement part: Micro limit switches are widely used in desktop fabrication equipment, making them a familiar service part for repairs and maintenance.
• Simple integration concept: A mechanical endstop works with compatible controller boards and firmware that support standard endstop inputs.
• Suitable for troubleshooting: Replacing a worn or inconsistent switch can help resolve homing faults, failed endstop triggers, or irregular axis behaviour.

Where a Micro Limit Switch Is Commonly Used

A micro limit switch is commonly used in 3D printers that rely on mechanical endstops rather than optical or sensorless systems. Typical applications include replacing a faulty X or Y endstop, restoring Z-axis homing, or servicing a custom printer build.

Outside 3D printing, the same switch type is also commonly found in small CNC machines, linear motion projects, robotics assemblies, and other maker-built equipment that needs a simple on/off position trigger.

When to Replace a 3D Printer Endstop Switch

A replacement limit switch is often needed when a printer fails to home correctly, stops intermittently during homing, or does not register an endstop trigger consistently. Replacing a worn switch can restore dependable axis referencing when the original component has failed mechanically or electrically.
