The MGN12H Linear Guide Block is a high-precision, compact linear motion component designed for use with MGN12 rails. It provides smooth and stable movement, making it ideal for 3D printers, CNC machines, and automation systems.
-
High-Precision Linear Motion: Ensures smooth and accurate movement along an MGN12 linear rail.
-
H-Type (High Load Capacity): The H designation indicates a longer and more robust block for improved stability and load distribution.
-
Durable Stainless Steel Construction: Provides excellent wear resistance, corrosion resistance, and long service life.
-
Preloaded for Stability: Minimizes play and improves accuracy in precision applications.
-
Compact and Lightweight: Ideal for space-constrained designs requiring smooth motion.
-
Low Friction & High-Speed Performance: Designed for efficient and reliable operation with minimal maintenance.
-
Width (W): 27 mm
-
Length (L): 44 mm
-
Height (H): 10 mm
-
Rail Width: 12 mm (MGN12 Standard)
-
Mounting Hole Spacing (Center-to-Center): 20 mm
-
Mounting Hole Size: M3

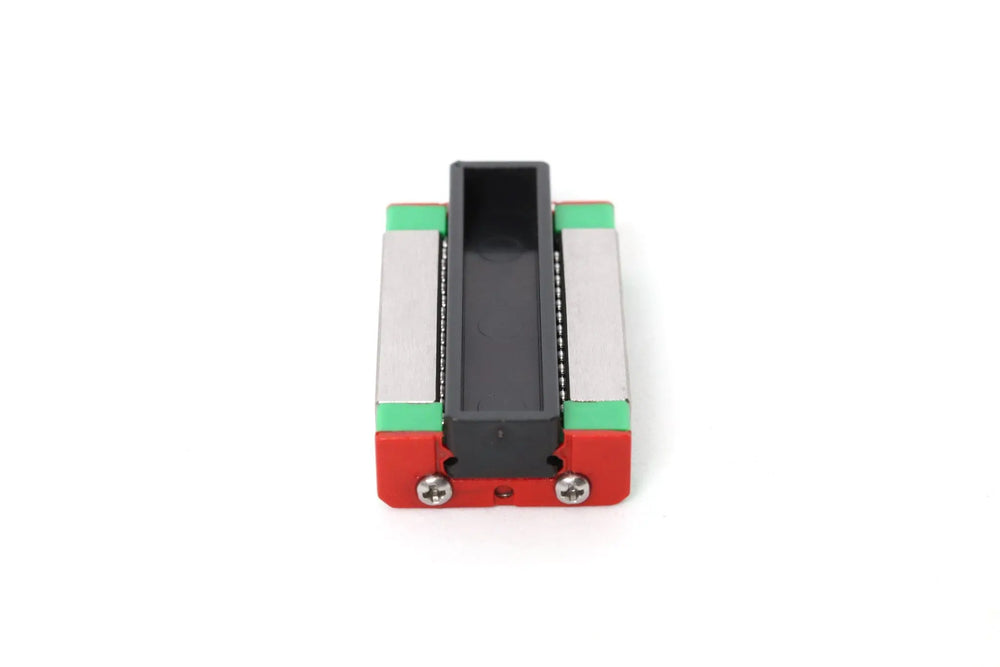

MGN12 H Linear Guide Block
Current Inventory: 6
/Barcode: MGNH12
