Power + Performance for your 3D Printer
Titan Aero integrates the Titan extruder and V6 HotEnd into one neat little package. All the lightweight performance, reliability and usability of V6 and Titan, along with some benefits all of its own.
By combining a hot end and extruder, Titan Aero is ultra compact. It offers you an extra 25mm of Z-axis build height compared to a V6 + Titan combo.
Compact also means rigid. Aero copes brilliantly with knocks and bumps, allowing it to work with the fastest of 3D printers.
By having a short, well constrained filament path, Aero is great for flexibles. It minimises places where filament can bend, buckle and jam, giving a better flexible printing experience.
Titan Aero is built on the E3D V6 all metal design, allowing you to reliably 3D print any thermoplastic at temperatures up to 285°C For more information regarding the temperature limits of the Titan aero please visit this documentation page
It’s also been designed to take standard V6 heatbreaks, so that you can interchange components from E3D’s entire modular ecosystem to suit your needs. Choose from temperature sensors, heater cartridges, Volcano, or one of the 92+ different nozzles we provide.
Aero is mounted using a standard hole pattern, allowing it to be fitted onto a wide range of 3D printers and making designing mounting solutions straightforward to do.
By using Titan’s custom engineering and rigorously tested extrusion mechanism, Aero is highly reliable and retains all of the smart usability features. It’s a breeze to load and unload filament, manually extrude, adjust idler tension, and clean out debris from the hobb.

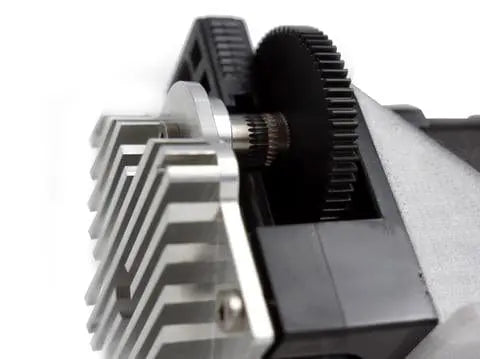

Likewise the use of Titan’s 3:1 gearing ratio allows the use of smaller motors, making for a lighter weight carriage whilst maintaining reliability and pushing power.
Please view the assembly guide here:

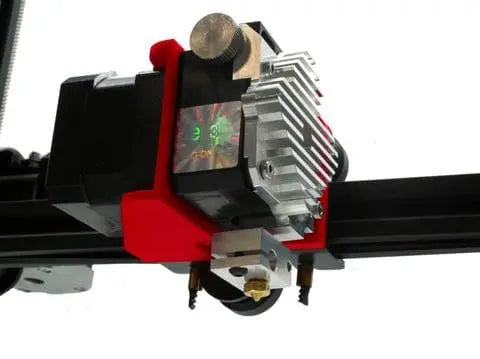

Official E3D Titan Aero 1.75mm 12V Full Aero Kit including the "Compact but Powerful" Stepper Motor
Also compatible with E3D volcano V2 upgrade
MFG Part #: TITAN-AERO-**-175-24V-+BR-+MTR
- Nema17 42-40mm C.B.P. Motor
- E3D Titan Gear reduction Extruder

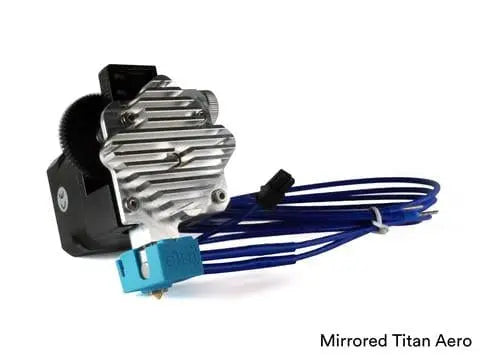

- Mirrored Aero Heat Shroud with integrated heatsink
- 40x40x10 Heatsink fan, it's mounting Screws
- Mounting hardware
- All metal heat brake
- E3D V6 heat block 23mm
- E3D silicone sock, 23mm
- PT100 Sensor
- PT100 extension Wire
- 30Watt heater with pre-terminated Ferrule ends
- Stepper motor extension wire 6pin Stepper to 4 pin DuPont 2mm
- "traffic Cone" filament Guides 1.75mm (some with 2.85)
Newer models don't come with Nema17 to 2040 Aluminium extrusion Bracket.
