A wide stance capable of housing up to 6 wheels creating an extremely stable gantry. A key component in Belt and Pinion as well as Lead Screw transmissions. Recessed holes for professional flush mounts. Tapped holes are included to facilitate a 90° connection between any two XLarge gantry plates which is ideal for XY configurations.
Product Features
- Wide stance
- Countersunk holes
- Tapped holes
- Center recess
- Multiple mounting configurations
What is Included
- (1) XLarge C-Beam Gantry Plate
Specifications
Technical specifications
Product Specifications
- Size: 125 x 125mm
- Thickness: 6mm
- Material: 6061 – T5 Aluminum
- Finish: Brushed and anodized
- Color: Black
- Ultimate tensile strength of at least 190 MPa (28,000 psi)
Compatibility
Will it work with my printer?
Reviews
What our customers are saying
No reviews yet — be the first to leave one.
/

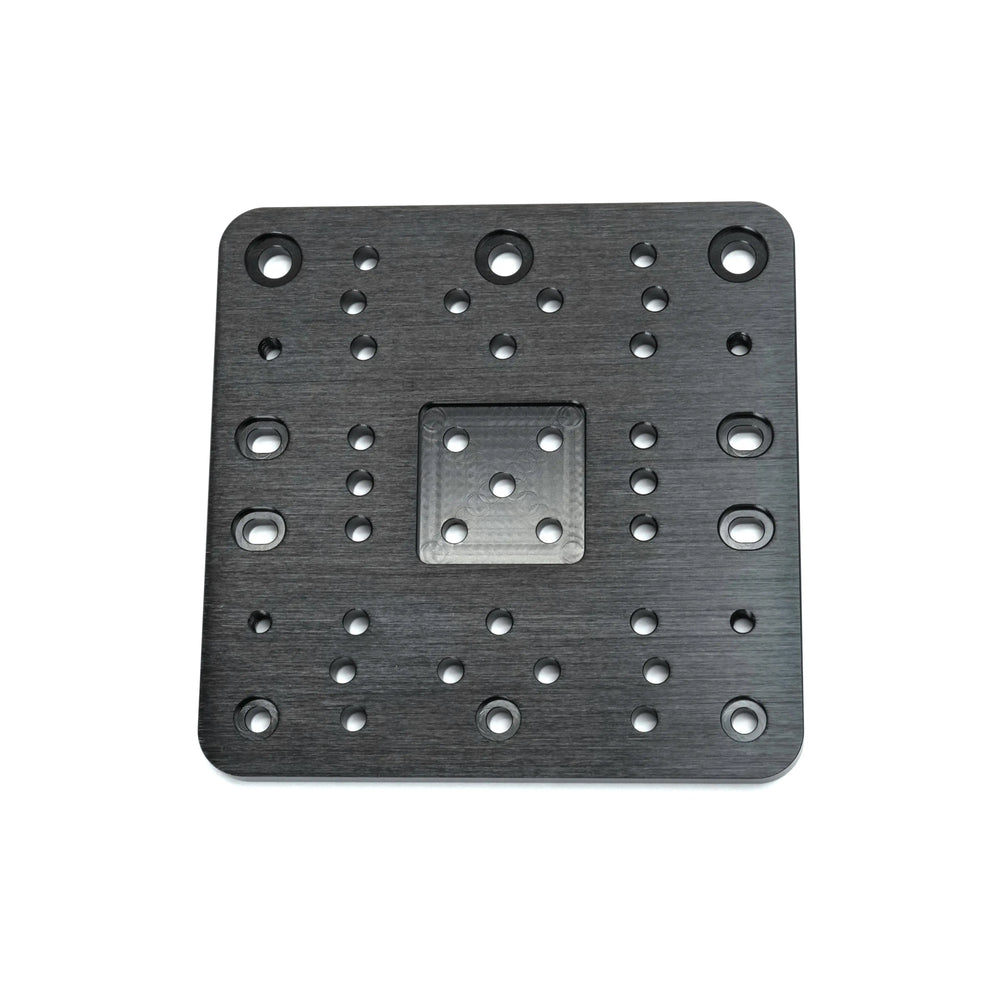

OpenBuilds XLarge C-Beam Gantry Plate (Black)
CAD
