What the SHF12 Linear Rail Shaft Support Does

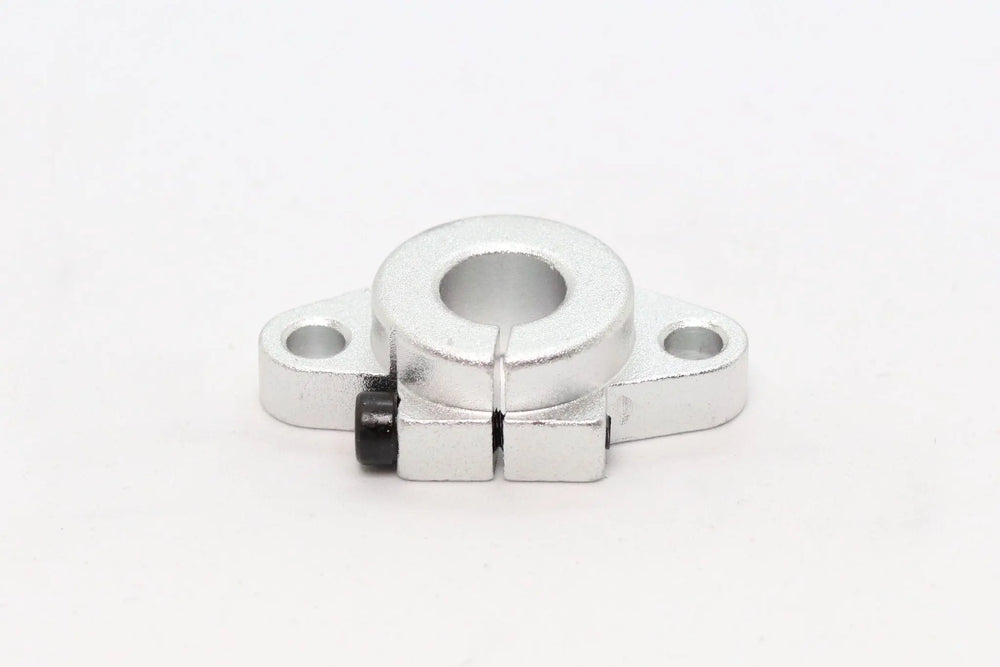

The SHF12 Linear Rail Shaft Support is a precision mounting bracket for securing 12mm smooth rods or linear shafts in place. It is designed to support stable and accurate linear motion in CNC machines, 3D printers, and automation systems while helping reduce vibration and misalignment.
Key Features of the SHF12 Shaft Support
- Made for 12mm shafts: The SHF12 support is designed to hold 12mm diameter smooth rods securely and consistently.
- Aluminum alloy construction: The bracket uses a durable aluminum alloy body that is lightweight, strong, and corrosion-resistant for long-term machine use.
- Two M5 mounting holes: The support mounts easily to machine frames and other structural surfaces using two M5 mounting points.
- Precision machined fit: A precision-machined body helps maintain tight tolerances for smooth, accurate linear motion.
- Clamp-style fastening: A single clamping screw secures the shaft firmly without damaging the rod surface.
Where to Use a 12mm Linear Shaft Support
This 12mm shaft support is suited to machines and motion systems that rely on smooth rods for guided travel. The rigid mounting design makes it a practical choice for builds where shaft alignment and repeatable movement matter.
Common applications
- 3D printer linear motion systems on X, Y, and Z axes
- CNC machines and engraving machines that use 12mm shaft-supported motion
- Robotics and automation equipment where stable rod mounting is required
- Guide rail and actuator systems built around 12mm linear shafts
Specifications
Technical specifications
| Supported shaft diameter | 12mm |
| Material | Aluminum alloy |
| Mounting holes | Two M5 mounting holes |
| Fastening style | Clamp-style with single clamping screw |
Compatibility
Will it work with my printer?
FAQ
Frequently asked
Reviews
What printers are saying
/
SHF12 Linear Rail Shaft Support
