Improves the Efficiency of High-quality 3D Modeling
- Impressive high resolution for fine details
- Handle dark and casting metal surface with less limitations
- Fast scan speed for high efficiency

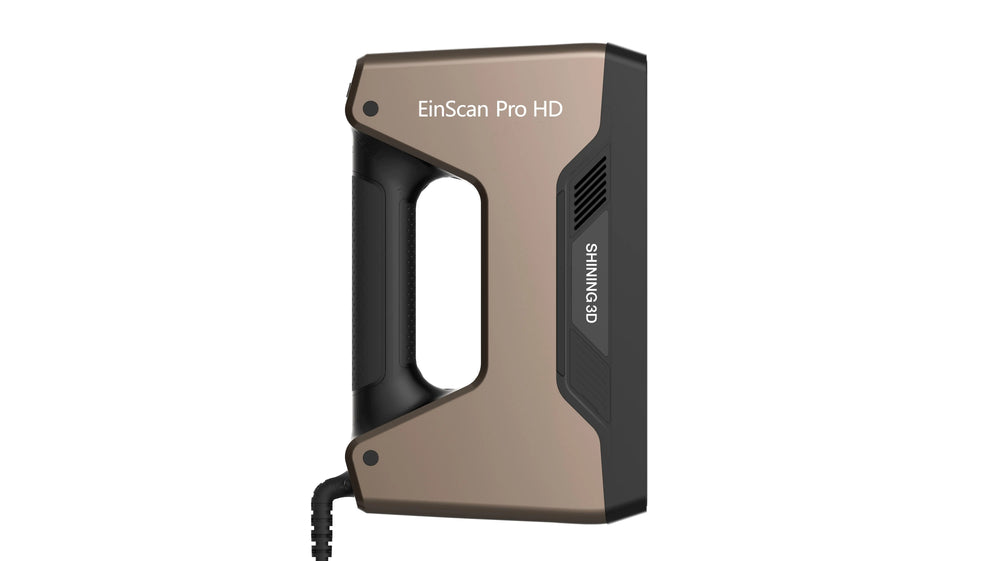

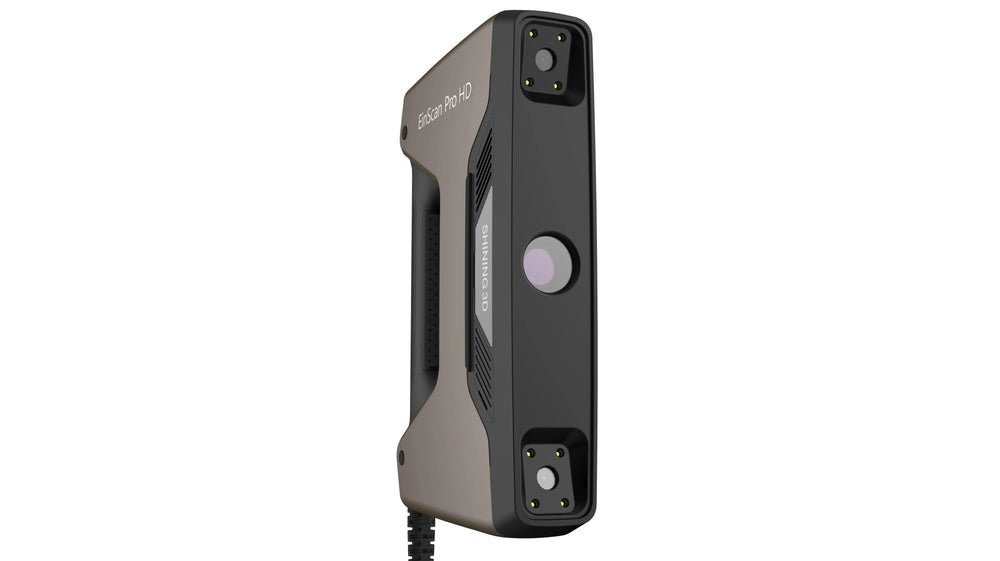

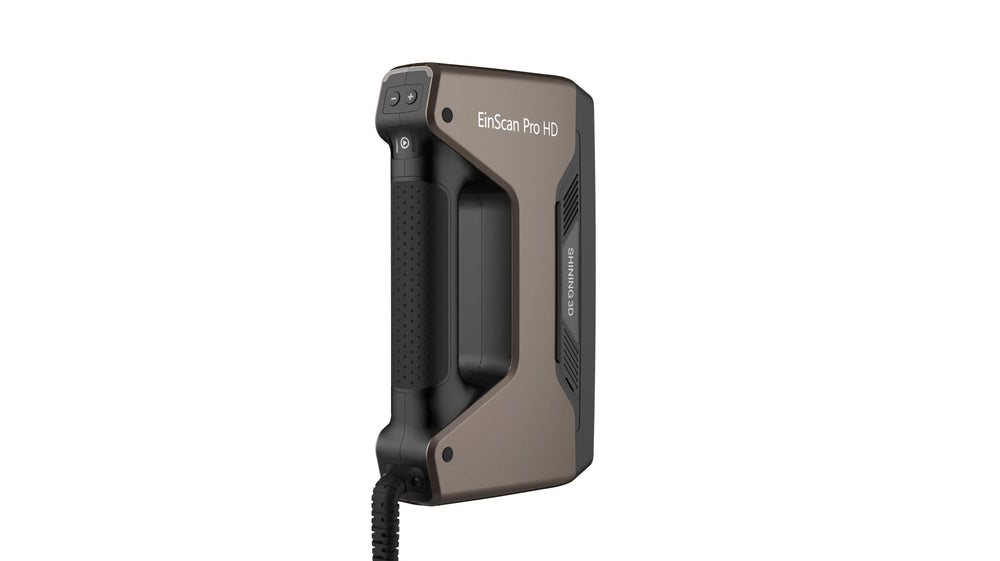

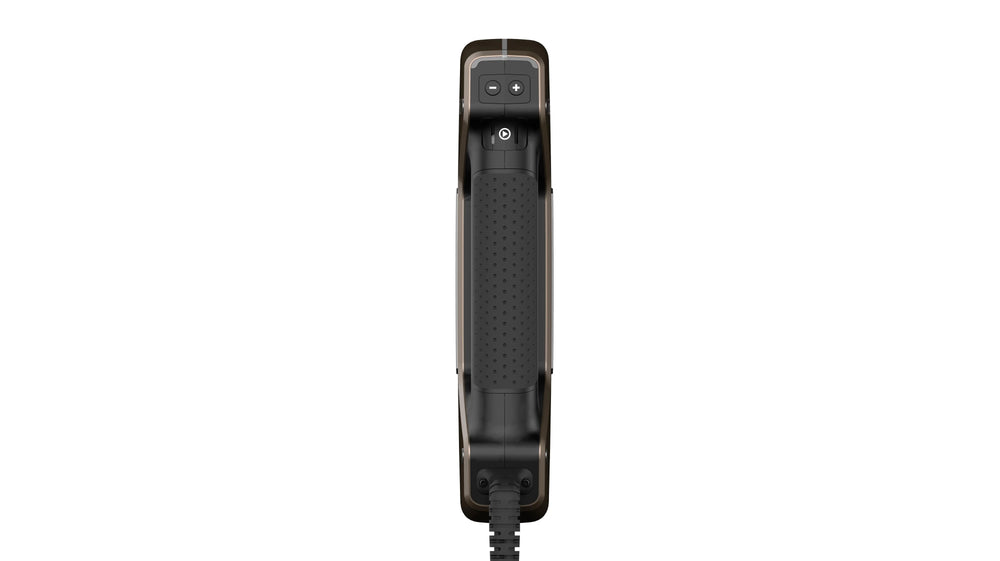

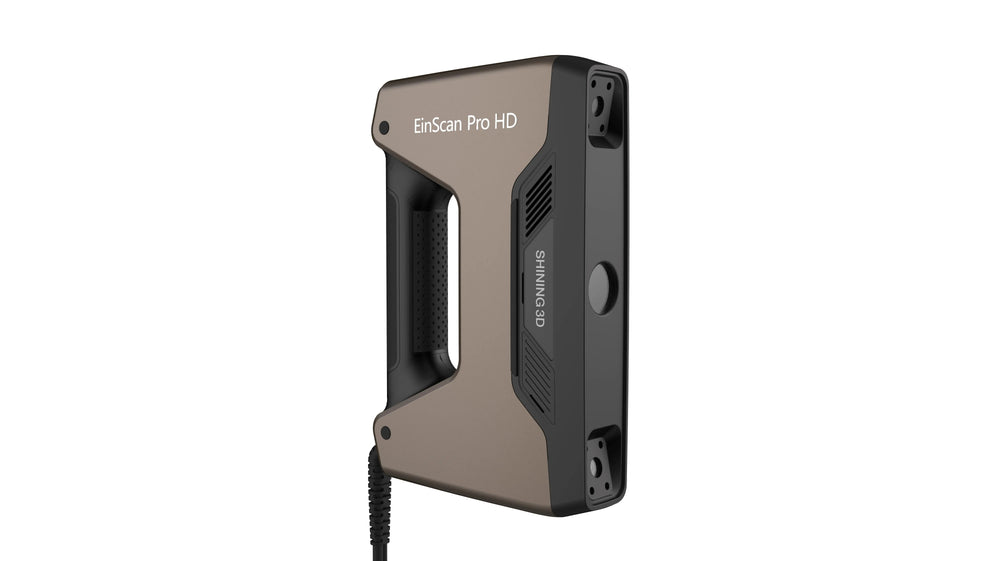

Inherited multi-functional and modular design of EinScan Pro series handheld 3D scanner, EinScan Pro HD delivers unparalleled performance in capturing high resolution and accuracy by handheld scanning. Exceptional versatility and powerful optimizations come together for the ultimate high-efficiency and professional-grade 3D scanning experience. It is reliable assistant for designers and engineers who care about high quality 3D modeling.
Impressive High Resolution for Fine Details
By adopting a new structure light projection modular, the stripe pattern scanning which was traditionally used in Fixed Scan Mode is now utilized to Handheld HD Scan Mode.
By 0.2mm minimum point distance setting with optimized algorithm, it brings high resolution and accuracy in handheld scanning as good as under fixed scan.
Less Limitations of Scan Objects
With new lighting projection hardware and software algorithm, EinScan Pro HD is capable to scan a wider range of objects of dark or black color and casting metal surface, enriching the capability for 3D scanning of materials.
Fast Scanning Speed and Data Transmission
EinScan Pro HD has a dramatic breakthrough in scanning capability, processing up to 3,000,000 points per second under handheld scan mode, and less than 0.5s for every single frame in Fixed Scan Mode. USB 3.0 provides high speed data transmission.
High Accuracy for High Quality 3D Modeling
By kinds of positioning methods, both scanner or objects can be moved during scanning. It delivers accuracy up to 0.04 mm in Fixed Scan Mode. Under handheld scanning mode by marker alignment, the volumetric accuracy is up to 0.045mm+0.3mm/m.
Modular Design for a Wide Range of Applications by Multi Scan Modes and Data Alignments
Modular designed Color Pack, Industrial Pack as optional add-ons to EinScan Pro HD extend your scanning experience for more applications. Multiple positioning methods, including feature alignment, marker alignment, turntable coded targets alignment, manual alignment and texture alignment (with Color Pack ) , greatly enhance the scanning efficiency without additional preparation.
Take the Portable EinScan Pro HD Anywhere You Go
Ergonomic designed EinScan Pro HD with a light weight, you can easily take the scanner anywhere you go; easy plug-and-play let you run the scanner without complex installation; the compact size allows scanner moving freely with unlimited scanning experience.
Package Size : 37 X 36.5 X 13.5 cm
Lightweight : 1.13 KG
ExScan Pro
Developed by SHINING 3D, ExScan Pro is a professional software for 3D scanning and data processing with a collection of both scan and mesh editing tools for generating high-quality 3D models.
- Clear work guide process
- User friendly interface
- Data post processing
- Data measuring
Solid Edge SHINING 3D Edition
EinScan Pro HD, including Solid Edge SHINING 3D Edition with the mainstream 3D CAD design functions， brings a convenient and powerful 3D design tool to help achieve your creative ideas.
Accuracy of EinScan Pro Series Scanners
Factory tested accuracy according to VDI/VDE 2634 standards.
EinScan Reverse Engineering Design Bundle
A professional multi-functional 3D scanner with reverse engineering and CAD capabilities
