PETG with tribological properties

The popularisation of 3D technology and the increase in specific expectations regarding the functionality of prints brings the need to develop increasingly specialised materials. Analysing the needs of the market and repeated requests from customers, we decided to supplement our range with PETG material with tribological properties.

We present Spectrum PETG/PTFE copolymer for use in sliding elements and gears. As the basis for the material, we used PETG, well-known for its excellent mechanical properties, supplemented by adding 10% PTFE, commonly known as Teflon, with self-lubricating properties. Thanks to the meticulous selection of components while reducing the coefficient of friction, the filament retains the ease of printing, interlayer adhesion, impact strength and thermal properties typical of PETG.

Spectrum PETG/PTFE will find use in printed components subject to increased wear from friction and operating temperatures of up to 70°C. The filament is available in a wide range of colours.

Material characteristics

  • 10% PTFE content
  • reduced coefficient of friction in comparison to conventional PETG
  • thermal resistance up to 70°C
  • ease of printing
  • good chemical resistance
  • perfect bonding of the layers

Applications

  • functional prototypes,
  • manufacturing low friction parts
  • manufacturing low-load gears and transmission elements
  • end-use parts

General Information

Color Traffic Red
Spectrum colour name Traffic Red
Diameter 1.75mm
Dimensional Tolerance ± 0.05mm
Verify your spool - preview of the diameter course on the entire length of the spool Yes
Density 1.32 g/cm3
Net Weight 1000g
Total Weight 1400g

Recommended Print Settings

Printing temperature 230-255°C
Heated bed necessary
Heated bed temperature 60-80°C
Printing speed 30-70 mm/s
Closed chamber Not necessary

Dimensions of the Spool

Outer diameter 200mm
 Width 70mm
 Inner diameter 52mm
Empty spool weight ± 250g

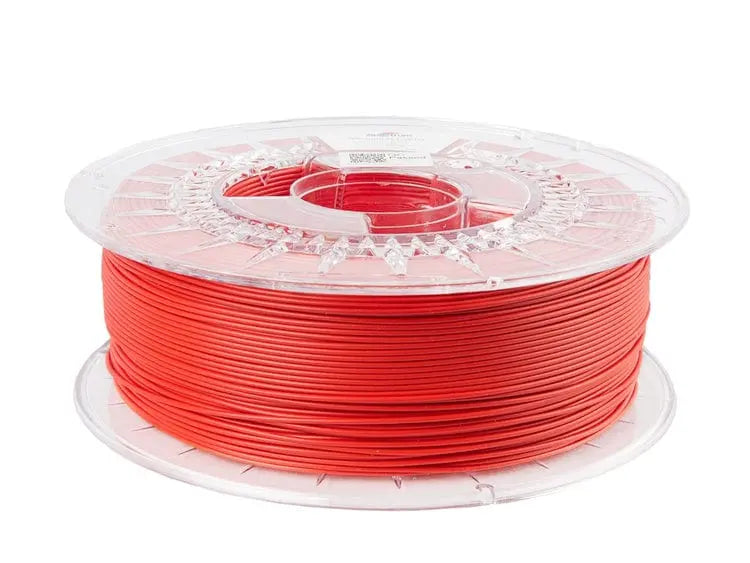

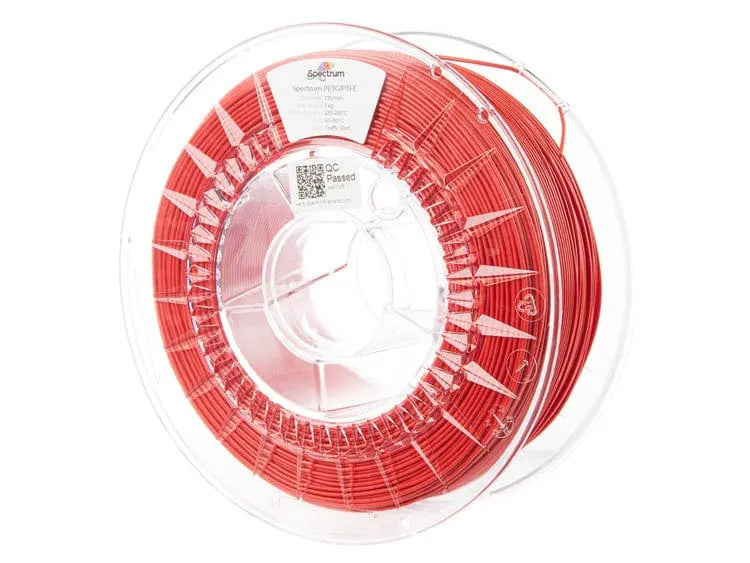

Traffic Red - 1.75mm Spectrum PETG/PTFE Filament - 1 kg
