Key Features

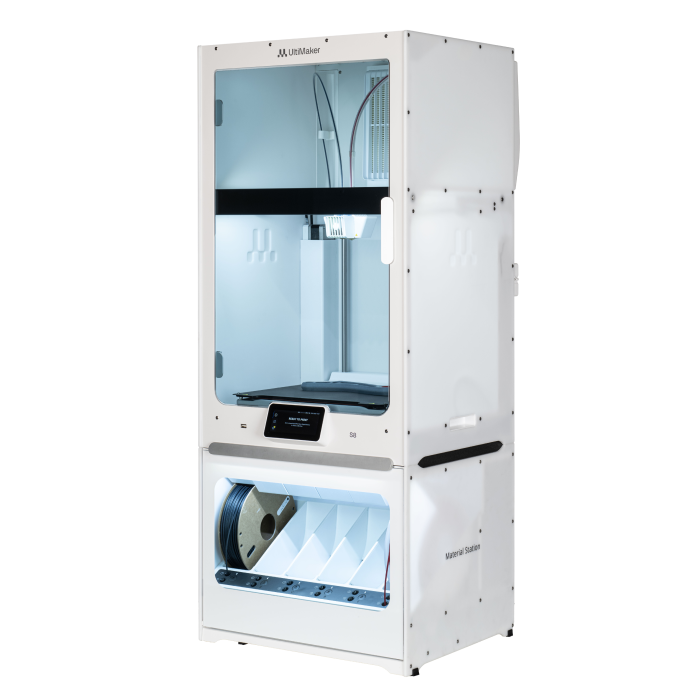

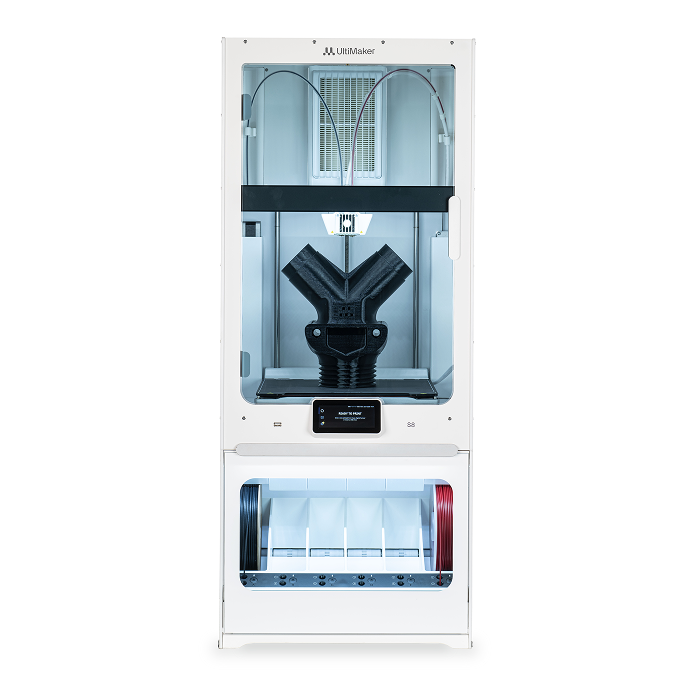

UltiMaker S8 Pro Bundle
High-Speed 3D Printing with Smart, Automated Material Management.
Ensure 24/7 uninterrupted printing with its Material Station, which automatically manages up to six materials for seamless transitions. Say goodbye to manual swaps and downtime—keep your production running smoothly, no matter the complexity of your prints.
Say goodbye to manual swaps and downtime.
Blazing productivity.
The UltiMaker Cheetah motion planner
Unlock new levels of efficiency with the new UltiMaker Cheetah motion planner, redesigned high flow print cores, built in accelerometer, new feeder system and improved firmware
All the uptime in the world.
Automatic material handling
Designed to be left unattended, the Material Station allows the UltiMaker S8 to 3D print longer – day or night. Loading material into the Material Station takes seconds – not minutes. Simply open the door and drop the spool into a bay. During a print, any spool not in use can be switched out.
3D print more materials. More easily.
Hassle-free storage
Every spool is kept below 25% relative humidity, making it easy to realize more 3D printing applications with almost any combination of polymers and abrasive composites. Each of the Material Station's material bays have NFC readers and reinforced prefeeders for integration with UltiMaker Cura and Digital Factory.
Digital Factory
The only 3D printing software you will ever need
Digital Factory is designed to streamline every step of your 3D printing workflow, from slicing, to file management and even maintenance. Scalable for any team or enterprise, Digital Factory makes managing your 3D printing projects easier, faster, and more collaborative.
Advanced hardware and software security features built-in for professional use.
Designed and built in Europe, the UltiMaker S8 is equipped with comprehensive security features, offering peace of mind for professionals in engineering and manufacturing. From secure hardware to advanced firmware, every aspect is designed to protect your intellectual property and ensure safe operation.
Updated feeder system
New hardened feeder module design inherited from Factor 4 for improved grip and better material control at high speeds.
Dual high flow print cores
The dual extrusion design works together with software and firmware features to allow you to combine any 2 materials no matter how different they are, which low material waste and high reliability.
Integrated EPA filter
Independently tested to remove up to 95% of ultrafine particles to increase air quality peace of mind. The fully enclosed build chamber also boosts print quality.
High flow print cores
The new AA+ and CC+ print cores, exclusive the the UltiMaker S8 have a new quad-chamber design that allows for 2.5x more flow and also help with regulating the pressure in the print head for cleaner prints.
Flexible build plate
Skip using glue and remove parts effortlessly with the PEI-coated flexible build plate. Its patent-pending design uses 25 magnets and 4 pins for perfect alignment – reducing the time spent using the S8 and increasing productivity.
Cura integration
Access the UltiMaker Cura features that speed up your workflow and increase print success – like intent profiles, easy remote printing, and more.
Specifications
| Specification | Value |
|---|---|
| Dimensions | |
| Build volume | 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches) |
| Assembled dimensions | W 495 x D 585 x H 800 mm (W 19.5 x D 23 x H 31.5 inches) |
| Print technology | Fused Deposition Modeling (FDM) |
| Compatible filament diameter | 2.85 mm |
| Weight | 29.1 kg (64.2 lbs) |
| Maximum power output | 500 W |
| Typical power output | 350 W |
| Input voltage | 100-240 VAC, 50-60 Hz |
| Operating sound level | 50 dBA (at 1 m distance) |
| Standby sound level | 42 dBA (at 1 m distance) |
| Extrusion | |
| Build plate type | Heated glass build plate |
| Build plate temperature | 20 - 110 °C |
| Build plate leveling | Full active leveling system: assisted and fully automatic |
| Build plate adhesion | Glue on glass for most materials. No glue with PVA or Brim adhesion method |
| Filament spool capacity | 2x 750 g; 2.85 mm diameter |
| Nozzle diameter | AA Print core (standard): 0.4 mm, 0.25 and 0.8 mm also available BB Print core (standard): 0.4 mm, 0.8 mm also available CC Print core (standard): 0.6 mm, includes ruby tip |
| XY resolution | 6.9 microns |
| Z resolution | 0.25 microns |
| Layer resolution | 0.06 - 0.15 mm (with 0.25 mm nozzle) 0.1 - 0.2 mm (with 0.4 mm nozzle, recommended) 0.2 - 0.6 mm (with 0.8 mm nozzle) |
| Print head travel speed | 300 mm/s |
| Print speed | < 24 mm³/s |
| Feeder type | Bowden (drives filament to the hot end) |
| Nozzle heat-up time | < 2 minutes |
| Build plate heat-up time | < 4 minutes |
| Cooling fans | Two part cooling fans and print core fan on each print core |
| Nozzle temperature | 180 - 280 °C (AA Print Core with 0.25, 0.4 mm and 0.8 mm) 230 - 280 °C (BB 0.4 mm and 0.8 mm) 180 - 340 °C (CC Print Core with 0.6 mm Ruby nozzle) |
| Print core hot end type | Multi-material, swappable hot ends |
| User Experience | |
| Camera | UltiMaker S7 Pro Bundle: built-in HD camera UltiMaker S7: no camera |
| Display | 4.7" (11.9 cm) full-color touchscreen |
| Filament flow sensor | Optical sensors for each extrusion line |
| Air manager (included in Pro Bundle) | Clean and consistent air circulation |
| Pause and resume | Manually or automatically via filament sensor |
| Extruder system | Dual extrusion, swappable print cores |
| Material station (sold separately) | Up to 6 materials at a time |
| Filament run-out notification | Automatic notification and pause |
| Software | |
| Pre-installed software | UltiMaker Cura |
| Recommended software | UltiMaker Cura, UltiMaker Digital Factory |
| Supported OS | MacOS, Windows, and Linux |
| Plugin integration | SolidWorks, Siemens NX, Autodesk Inventor |
| Supported file types | UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP |
| File transfer | Wi-Fi 2.4 & 5 GHz: IEEE 802.11a/b/g/n/ac LAN: Gigabit Ethernet USB: 2.0 |
| Safety and Compliance | |
| Certification | CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use |
| More information | Learn more about UltiMaker S8 safety and compliance. |
