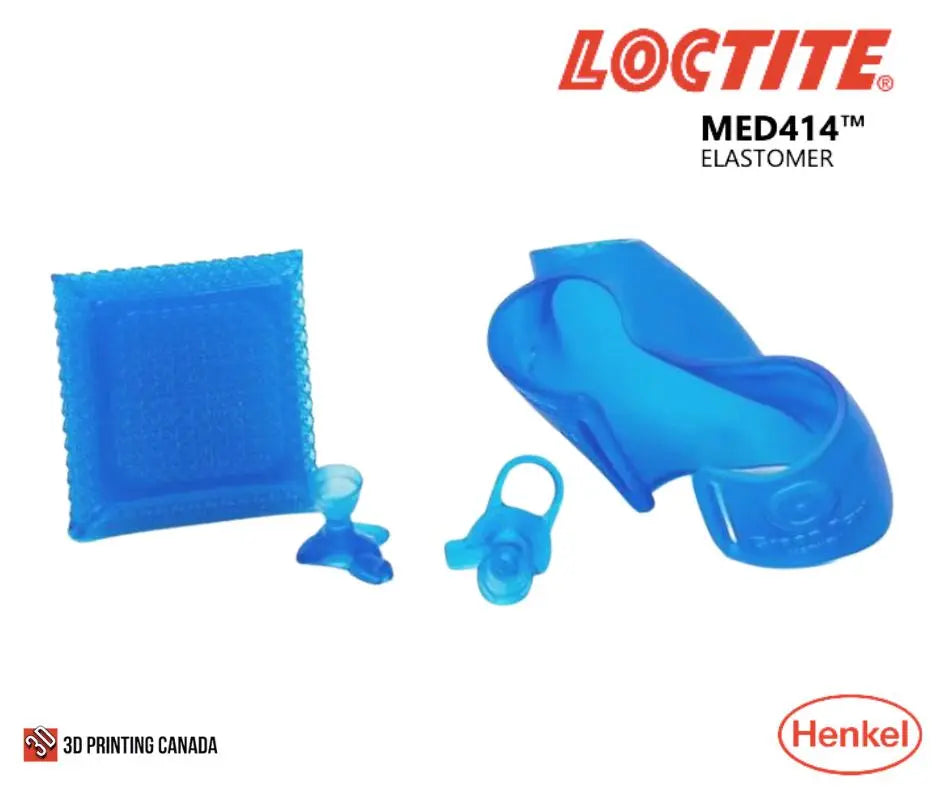

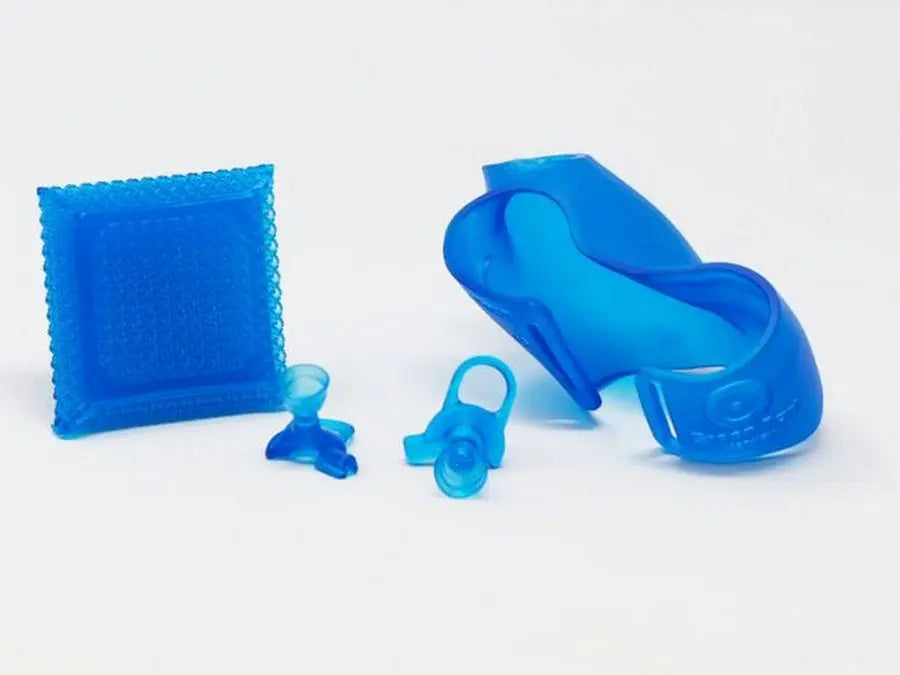

Elevate your medical printing game with Henkel LOCTITE 3D MED414 Blue. This soft photopolymer resin boasts exceptional elongation and tear strength, providing true elastomeric behavior for maximum flexibility. ISO 10993-5 and -10 compliant, this trusted choice is perfect for healthcare settings. Experience superior print resolution and a vibrant blue color with low shrinkage. TPO-free composition ensures safety, making it a premium choice for medical devices and skin contact.
|
Mechanical Properties |
Measure Method |
Green |
Post Processed (Broad Band UV) |
| Stress at 50% Strain (MPa) | ASTM D412 | 0.7-0.9 [1] | 1.6-1.7 [1] |
| Stress at 100% Strain (MPa) | ASTM D412 | 1.1-1.3 [1] | 2.1-2.2 [1] |
| Stress at 150% Strain (MPa) | ASTM D412 | 1.4-1.7 [1] | 2.8-2.8 [1] |
| Elongation at Break (%) | ASTM D412 | 215-230 [1] | 220-240 [1] |
| Stress at Break (MPa) | ASTM D412 | 2.3-2.6 [1] | 3.5-4.0 [1] |
| Tear Strength (kN/m) | ASTM D624 | 7.5-8.5 [1] | 13.5-16 [1] |
| Young's Modulus (MPa) | ASTM D638 | 3.0-5.0 [1] | 9.0-15.0 [1] |
| Tensile Stress at Break (MPa) | ASTM D638 | 1.2-1.5 [1] | 2.5-2.8 [1] |
| Tensile Elongation at Break (%) | ASTM D638 | 160-170 [1] | 170-190 [1] |
| Tensile Strength at Yield (MPa) | ASTM D638 | N/A | N/A |
| Technical Specifications: | |
| Cytotoxicity: | Passed ISO 10993-5 Standard |
| Irritation and Skin Sensistivity: | Passed ISO 10993-10 Standard |
| Tests for Irritation: | Passed ISO 10993-23 Standard |
| Stress at Break: | 4 MPa |
| Elongation at Break: | 240% |
| Tear Strength: | 16 kN/m |
| Shore A Hardness: | 50 |
Note: ISO & ASTM standard results are valid when using an approved Henkel-validated workflow.
